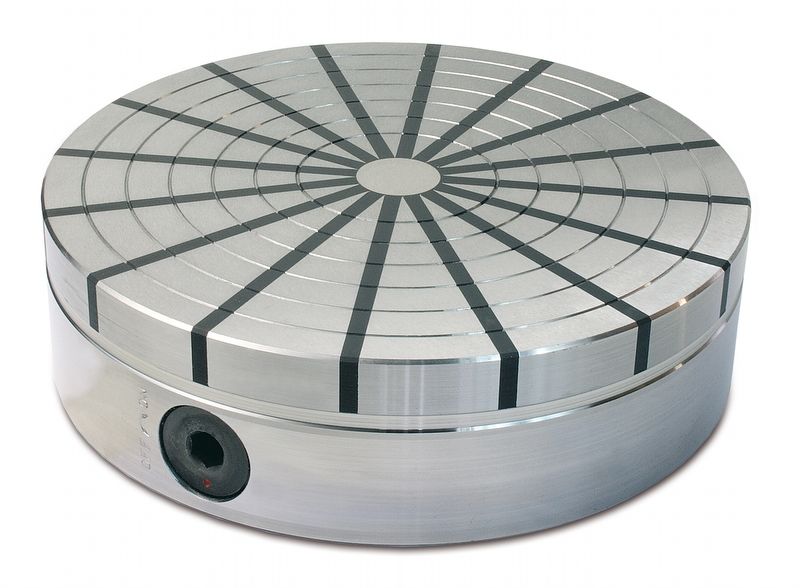

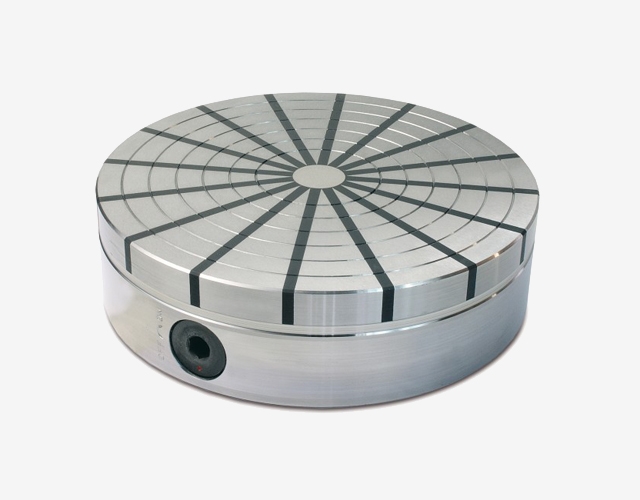

Circular magnetic chucks RS

RADIAL POLARITY
The circular magnetic chucks of the RS type with radial polarity are used primarily to hold strong circular elements and rings. They can be used for high speed turning operations. Magnetic force is adjustable at different levels.

Products Size (mm) Holes V-MAX.
(U/min.)		 Weight (kg) Price € each. Quantity
A H B C E F G
RS13
130 57 0 15 ------ 100 5 M6 1000 6 € 778,000
RS15
150 57 0 23 ------ 120 5 M6 1000 8 € 828,000
RS20
200 57 0 25 ------ 180 5 M6 800 13 € 1.068,000
RS25
250 70 0 30 ------ 220 5 M8 700 24 € 1.318,000
RS30
300 73 0 38 ------ 260 6 M8 700 36 € 1.928,000
RS35
350 73 0 40 ------ 300 6 M8 600 48 € 2.598,000
RS40
400 75 0 40 ------ 340 8 M8 500 64 € 3.568,000
RS50
500 88 0 50 ------ 400 8 M8 400 106 € 5.198,000
RS60
600 88 0 90 ------ 450 8 M10 400 150 € 7.398,000
