FXE Electro-Permanent Lifting magnets

The electro-permanent magnet technology guarantees maximum safety.
The advantages and reliability of permanent magnets and the user-friendly electromagnets are united into a single concept.
In the case of a cable cut or power failure, the lifted load cannot drop down. There is no need for battery maintenance; the activation and deactivation are done either by pushing a button on the magnet via a remote control or signal output, controlled by the customer himself.
Depending on the application, the FXE product line offers different concepts

FXE 300/500
FXE 750/1100/1600
FXE 400/600/1000
FXE 1000/2500/4000
FXE 1600/2400/3200/4800/7200
SPECIAL FXE FOR ROUND MATERIAL
FXE-Z WITH DEMAG FUNCTION

FXE 300/500

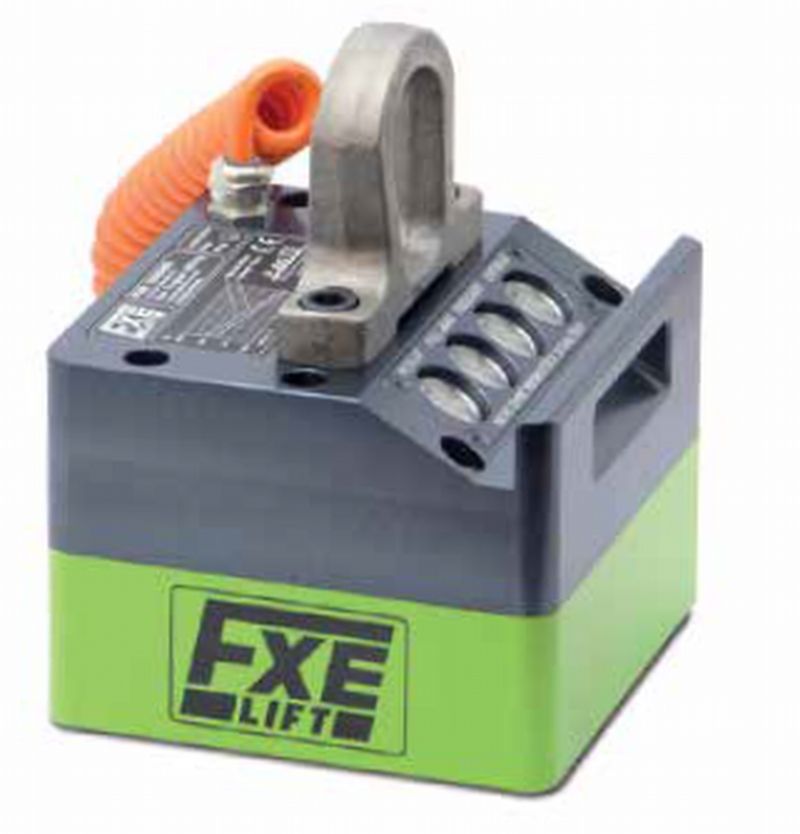

FXE 300/500 - Electropermanent Lifting Magnet
Equipped with pole structure 50 and a maximum load capacity of 300/500 kg, which is achieved at thicknesses from 15mm. For small magnetically active areas, this device is easily controlled and used for lifting serial parts, blanks and small castings and forgings.

FXE 300/50
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
4 1800 1500 70
6 2000 1500 140
8 2000 1500 200
10 2000 1500 280
15 2000 1500 300
FXE 500/50
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
4 1800 1500 100
6 2000 1500 200
8 2000 1500 300
10 2000 1500 400
15 2000 1500 500
Products Max load capacity (kg) Size (mm) N° Poles Pole Type Breakaway
kN		 Clamping
surface (mm)		 Weight
(kg)		 Price € each. Quantity
L B H
FXE 300/50
300 164 164 420 4 50 14 116 x 116 23 € 2352
FXE 500/50
500 234 164 420 6 50 22 180 x 116 31 € 2568

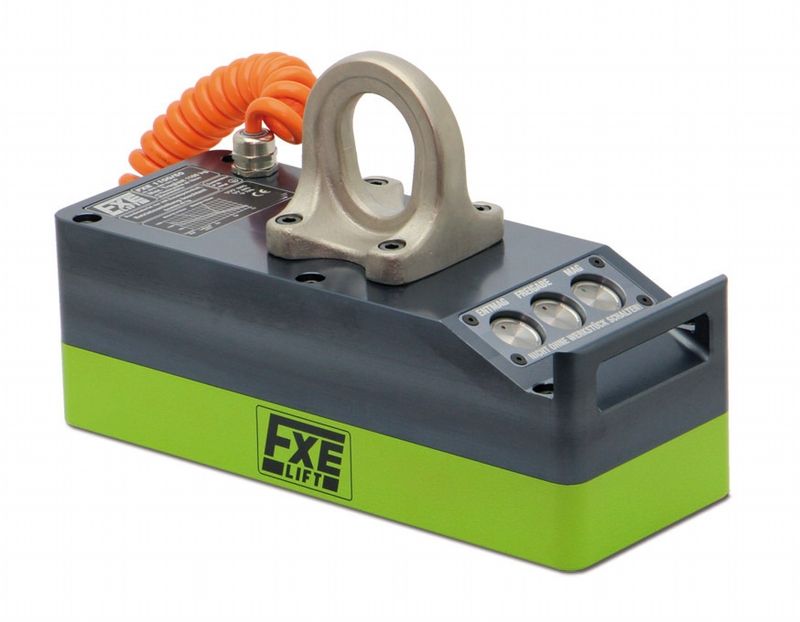

FXE 750/1100/1600

FXE 750/1100/16000 - Electropermanent Lifting Magnet
Equipped with pole structure 50 and a maximum load capacity of 750/1100/1600 kg which is achieved at thicknesses from 15mm. For small magnetically active areas, this device is easily controlled and used for lifting plates, laser and internal parts, tools and blanks.

FXE 750/50
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
4 1800 1500 150
6 2000 1500 250
8 2000 1500 400
10 2000 1500 600
15 3000 1500 750
FXE 1100/50
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
4 2000 1500 200
6 3000 1500 370
8 3000 1500 600
10 3000 1500 900
15 3000 1500 1100
FXE 1600/50
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
4 3000 1500 300
6 3000 1500 500
8 3000 1500 800
10 3000 1500 1400
15 3000 2000 1600
Products Max load capacity (kg) Size (mm) N° Poles Pole Type Breakaway
kN		 Clamping
surface (mm)		 Weight
(kg)		 Price € each. Quantity
L B H
FXE 750/50
750 298 164 250 8 50 30 244 x 116 27 € 3215
FXE 1100/50
1100 420 164 270 12 50 40 372 x 116 39 € 3647
FXE 1600/50
1600 620 164 270 18 50 60 564 x 116 56 € 4726

FXE 400/600/1000

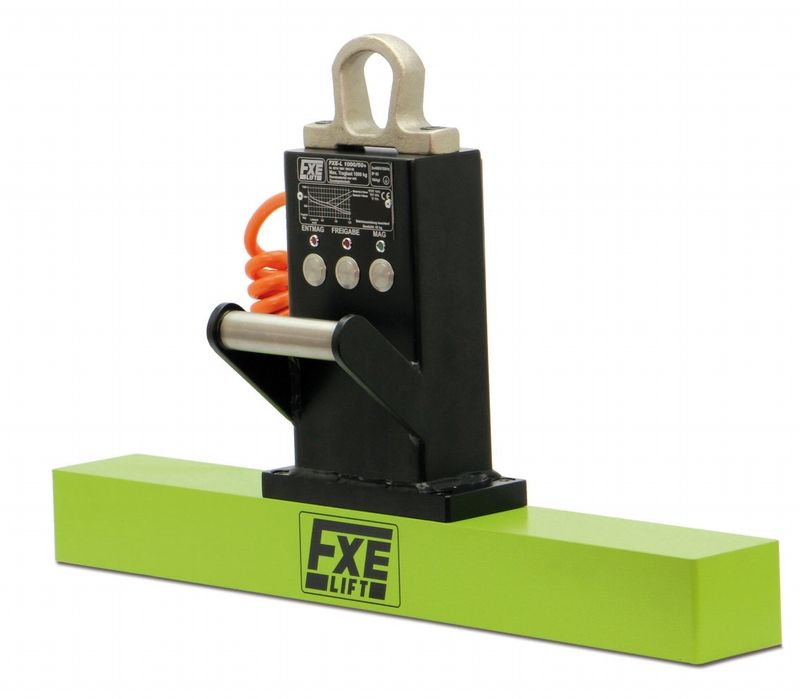

FXE 400/600/1000 - Electropermanent Lifting Magnet
Equipped with pole structure 50+ in a long narrow design and a maximum working load of 400/600/1000 kg, which is achieved at thicknesses from 15mm.  For small magnetically active areas, this device is easily controlled and used for lifting strips, bars, pipes, beams and rods. Also, using pole extensions allow it to position the magnets on long narrow loads.

FXE 400/50+
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
4 1800 1000 70
6 2000 1500 140
8 2000 1500 200
10 2500 1000 250
15 3000 1500 400
FXE 600/50+
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
4 2000 1000 100
6 2500 1000 200
8 2500 1000 300
10 3000 1000 350
15 4000 1000 600
FXE 1000/50+
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
4 2500 1500 150
6 3000 1500 300
8 3000 1500 400
10 4000 1500 400
15 5000 1500 1000
Products Max load capacity (kg) Size (mm) N° Poles Pole Type Breakaway
kN		 Clamping
surface (mm)		 Weight
(kg)		 Price € each. Quantity
L B H
FXE L400/50+
400 294 95 450 4 50+ 14 244 x 52 23 € 2568
FXE L600/50+
600 420 95 450 6 50+ 22 372 x 52 31 € 2880
FXE L1000/50+
1000 680 95 450 10 50+ 38 628 x 52 44 € 3755

FXE 1000/2500/4000

FXE 1000/2500/4000 - Electropermanent Lifting Magnet
Equipped with pole structure 80 and a maximum load capacity of 1000/2500/4000 kg which is achieved at thicknesses from 25mm. For small magnetically active areas, this device is easily controlled and used for lifting heavy plates, plasma and lame-cut parts, tools and blanks.

FXE 1000/80
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
8 2000 1500 200
10 2000 1500 300
15 2000 1500 600
25 2000 1500 1000
FXE 2500/80
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
8 2000 1500 500
10 3000 1500 750
15 3000 1500 1500
25 3000 2000 2500
FXE 4000/80
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
8 3000 1500 800
10 3000 1500 1200
15 3000 1500 2400
25 4000 1500 4000
Products Max load capacity (kg) Size (mm) N° Poles Pole Type Breakaway
kN		 Clamping
surface (mm)		 Weight
(kg)		 Price € each. Quantity
L B H
FXE 1000/80
1000 228 228 295 4 80 36 172 x 172 39 € 3280
FXE 2500/80
2500 508 228 295 10 80 90 448 x 172 77 € 5158
FXE 4000/80
4000 783 228 295 16 80 144 724 x 172 132 € 6880

FXE 1600/2400/3200/4800/7200

FXE 1600/2400/3200/4800/7200 - Electropermanent Lifting Magnet
Equipped with pole structure 100 and a maximum load capacity of 1600/2400/3200/4800/7200 kg which is achieved at thicknesses from 35mm. For small magnetically active areas, this device is easily controlled and used for lifting forgings, heavy plates, plasma and internal parts, tools, ingots...

FXE 1600/100
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
10 2000 1500 400
20 2000 1500 1000
35 3000 1500 1600
FXE 2400/100
10 2000 1500 600
20 4000 2000 1500
35 4000 2000 4800
FXE 3200/100
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
10 3000 1500 800
20 3000 1500 2200
35 4000 1500 3200
FXE 4800/100
Material Thickness (mm) Max. Dimension (mm) Max. Load
(kg)
L (max) B (max)
10 3000 1500 1200
20 4000 2000 3000
35 4000 2000 4800
FXE 7200/100
10 3000 1500 1800
20 4000 2000 3300
35 4000 2500 7200
Products Max load capacity (kg) Size (mm) N° Poles Pole Type Breakaway
kN		 Clamping
surface (mm)		 Weight
(kg)		 Price € each. Quantity
L B H
FXE 1600/100
1600 296 296 125 4 100 58 222 x 222 82 € 4953
FXE 2400/100
2400 415 296 335 6 100 87 342 x 222 118 € 6032
FXE 3200/100
3200 536 296 335 8 100 112 462 x 222 178 € 6463
FXE 4800/100
4800 778 296 400 12 100 168 702 x 222 202 € 10024
FXE 7200/100
7200 778 415 400 18 100 252 702 x 342 298 € 15250

SPECIAL FXE FOR ROUND MATERIAL

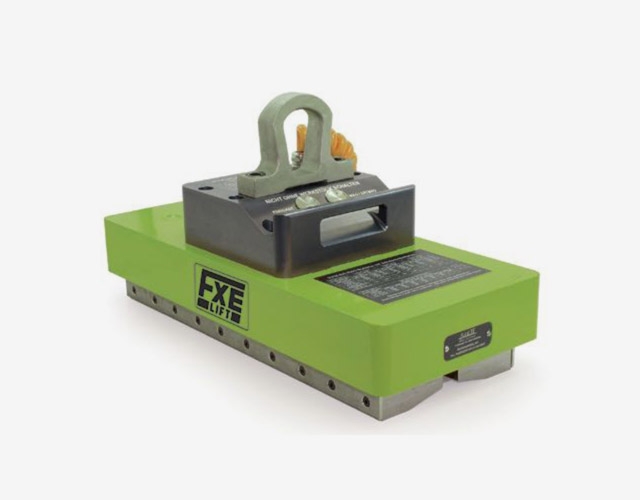

SPECIAL FXE FOR ROUND MATERIAL
FXE-R Lifting Magnets can pick up round, rotary and flat material. We manufacture from our FXE-based models with pole shoes, which can customize and raise the diameter bandwidths individually or in layers.

Products Max load capacity (kg) Size (mm) N° Poles Pole Type Breakaway
kN		 Clamping
surface (mm)		 Weight
(kg)		 Price € each. Quantity
L B H
FXE-R2400/100
2400 536 296 370 8 100 80 158 € 7531

FXE-Z WITH DEMAG FUNCTION

FXE-Z WITH DEMAG FUNCTION
FXE-Z Lifting Magnets with additional demagnetizing function are produced from our FXE- basic models with an adjusted magnet system. With FXE-Z, workpieces that keep disturbing residual magnetism after transportation, such as alloyed mold plates or hardened driving and bearing parts, can be moved and demagnetized. It should be noted that this design and magnetic power is clearly higher than the standard FXE models. The quality of demagnetization depends on the workpiece, therefore not every request can be met.

Products Max load capacity (kg) Size (mm) N° Poles Pole Type Breakaway
kN		 Clamping
surface (mm)		 Weight
(kg)		 Price € each. Quantity
L B H
