Magnetic lifters - FX series

The FX magnetic lifters work with a single-magnet system using high energy magnets activated by a 90° rotation of the lever. The activation and deactivation of the system occurs without repercussions on the lever itself. The rotor is virtually indestructible as it is made from solid block.
The magnets in high energy neodymium ensure high performance up to 80°C.
Thanks to an unique design, the inner air gap is minimized to offer higher performances:

  • safety factor 3.5
  • a significant time reduction in loading and unloading
  • compliance with standards CE/EN 13155/MRL 2006/42 EWG
  • accessories handling horizontal and vertical motion
  • 100% nickel-plated
  • 3 years warranty

FX universal lifting magnets
FX-R lifting magnet series for round material
FX-P lifting magnet for thin plates, tubes and rods.
FX-VV Lifting Magnets for profiles and high teperature
FX-V HOT Lifting Magnets for high teperature - more than 250°
FX-C Circular Lifting Magnets

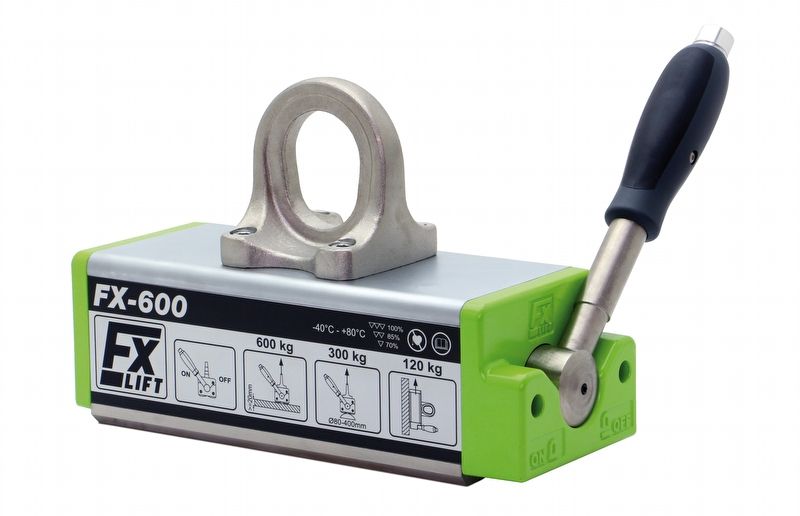

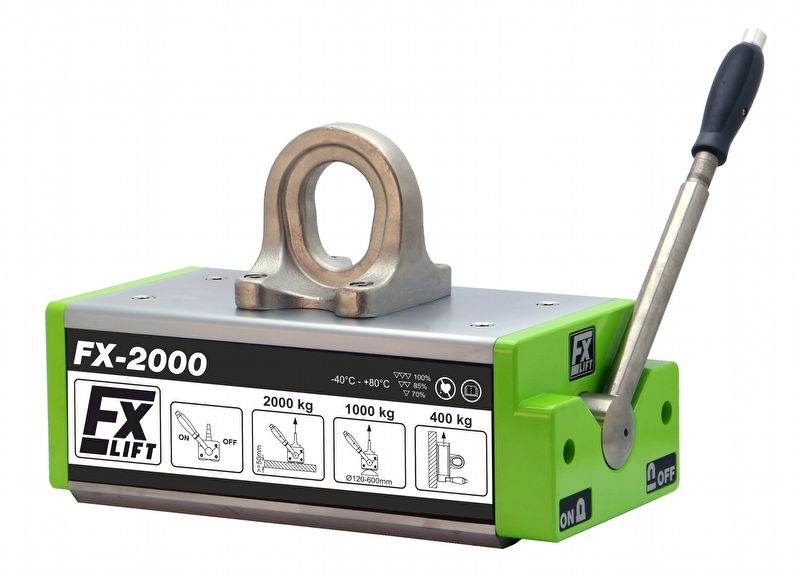

FX universal lifting magnets

FX 150/300/600/1000/2000/3000
In the standard design, the FX lifting magnets have a broad spectrum of applications.
The FX has good results with a large air gap as well as with thin, flat and round materials.
A feature of this product is its highly sturdy nature and a good price performance.



Products Max load capacity (kg) Max load capacity from (mm) Size (mm) Weight
(kg)		 Price € each. Quantity
Flat Round L B H H1 R X/Y
FX-150
150 diam. 50-200 mm 75 kg 8 161 64 60 124 136 30/42 3.6 € 398
FX-300
300 diam. 50-300 mm 150 kg 15 205 87 78 158 190 42/53 8.4 € 548
FX-600
600 diam. 80-400 mm 300 kg 20 288 112 94 189 228 51/62 19 € 858
FX-800
800 diam. 80-400 mm 400 kg 20 348 112 94 189 228 51/62 23 € 998
FX-1000
1000 diam. 100-450 mm 500 kg 25 361 152 120 240 261 60/76 42 € 1398
FX-1500
1500 diam. 100-450 mm 750 kg 25 485 152 120 240 261 60/76 61 € 1948
FX-2000
2000 diam. 120-600 mm 1000 kg 50 472 228 169 313 409 68/89 115 € 2698
FX-3000
3000 diam. 250-600 mm 1500 kg 50 648 228 169 313 534 68/89 166 € 3998

Safety factor 3,5 -Test method EN 13155 - max. Operation temperature 80°C

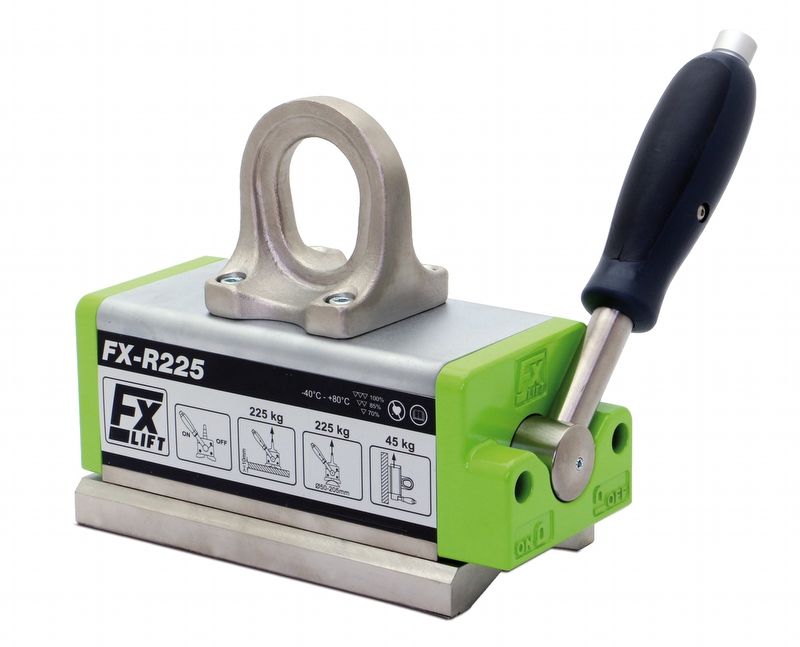

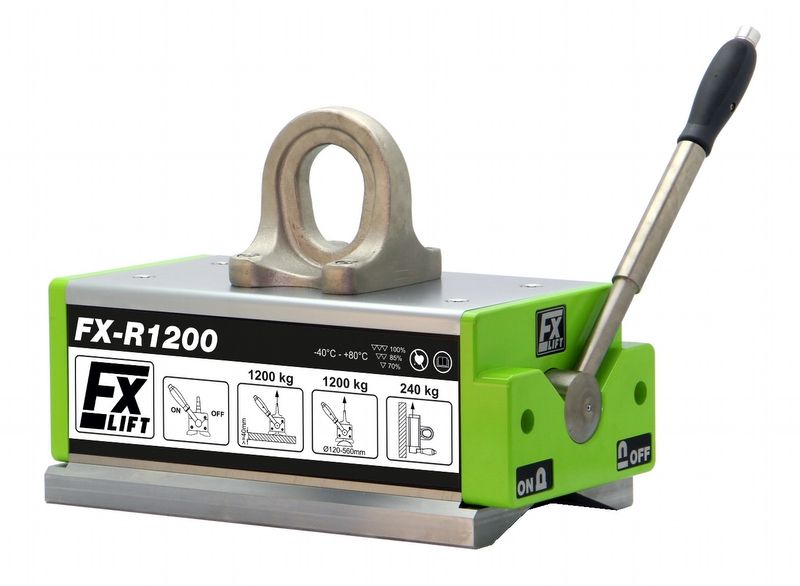

FX-R lifting magnet series for round material

FX-R 100/225/450/750/1200/1800
FX-R is the lifting magnet series for round material handling. The deep, flat angle prism ensures a secure position on the load and conducts the magnet field into the interior of the material. The magnet system can be activated over the entire diameter, without being rebounded. Even thin, flat material is not a problem for the FX-R. While handling hot pieces, the deep prism protects the magnetic core from overheating.

Products Max load capacity kg Max load capacity from (mm) Size (mm) Weight
(kg)		 Price € each. Quantity
Flat Round L B H H1 R X/Y
FX-R100
100 diam. 25-150 mm 100 kg 8 161 70 68 132 136 30/42 4 € 428
FX-R225
225 diam. 50-205 mm 225 kg 10 205 98 90 170 190 42/53 9.5 € 638
FX-R450
450 diam. 50-270 mm 450 kg 20 288 126 112 207 228 51/62 22 € 1048
FX-R750
750 diam. 70-370 mm 750 kg 20 361 170 142 262 261 60/76 49 € 1698
FX-R1200
1200 diam. 120-560 mm 1200 kg 40 482 248 190 334 409 68/89 127 € 3498
FX-R1800
1800 diam. 120-560 mm 1800 kg 40 648 248 190 334 534 68/89 182 € 4598

Safety factor 3,5 -Test method EN 13155 - max. Operation temperature 80°C

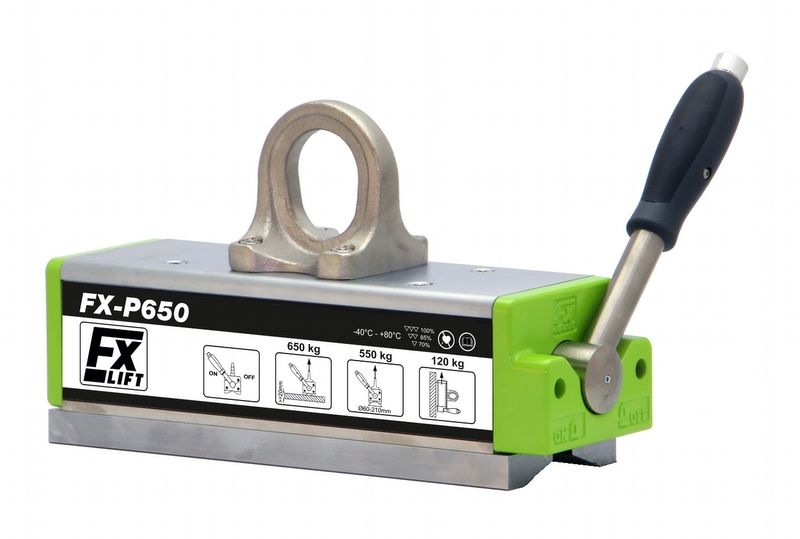

FX-P lifting magnet for thin plates, tubes and rods.

FX-P 170/300/650
FX-P is the lifting magnet series for professional lifting and moving thin plates, tubes and rods.
The special magnet-configuration, which is connected with the FX-P prismatic pole, ensures a maximum magnetic flux density with thin material as well. The FX-P can be well positioned and easy activated on a round material.

Model Max. capacità di carico per lastre e tubi Pipes and
Bars
3 mm 4 mm 6 mm 8 mm 10 mm 15 mm Ø kg Ø kg L Ømm
FX-P 170 50 80 120 170 170 170 2000x1250 150 30-105
FX-P 330 70 100 160 300 330 330 2000x1250 300 40-160
FX-P 650 100 160 200 450 530 650 3000x1500 550 60-210
Products Max load capacity kg Max load capacity from (mm) Size (mm) Weight
(kg)		 Price € each. Quantity
Flat Round L B H H1 R X/Y
FX-P170
170 diam. 30-105 mm 150 kg 8 195 64 70 134 136 30/42 5.1 € 498
FX-P330
330 diam. 40-160 mm 300 kg 10 265 87 90 170 190 42/53 12.4 € 748
FX-P650
650 diam. 60-210 mm 550 kg 20 352 112 108 203 228 51/62 26 € 1048

Safety factor 3,5 -Test method EN 13155 - max. Operation temperature 80°C

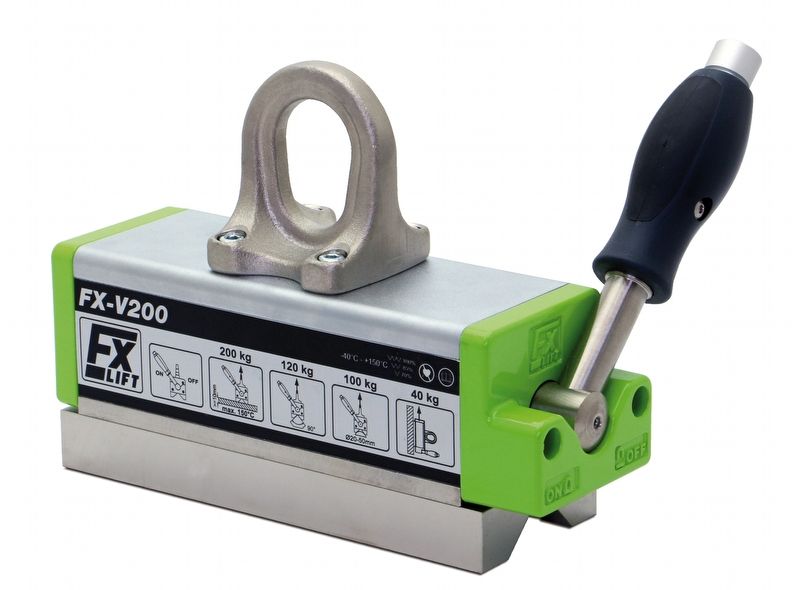

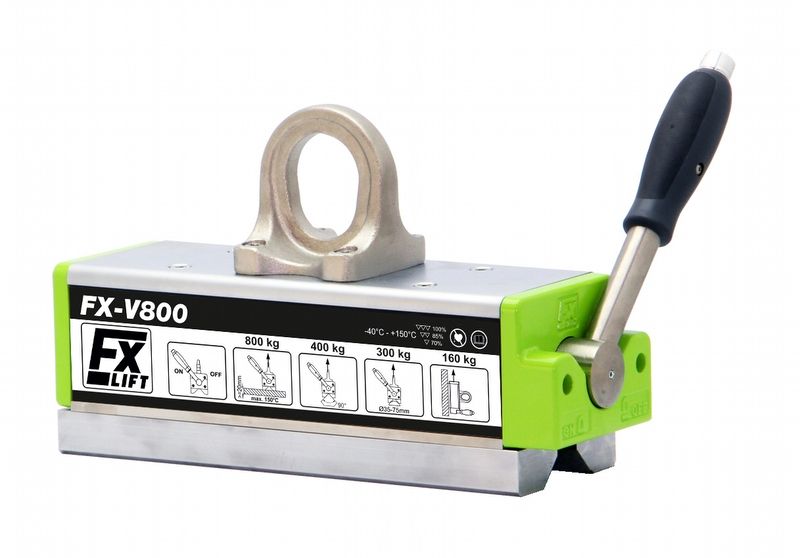

FX-VV Lifting Magnets for profiles and high teperature

FX-VV 200/400/800
FX-VV Lifting Magnets are geared to particular areas of application in steel, ship and container building. They have a long, slim design for lifting beams and profiles – also inside the beam – and compared with the relatively low material thickness, it reaches a maximum holding force so even thin plates can be lifted safely. Because of the 90° prism, the angle profiles can be lifted safely. While lifting hot flame cuts, the deep prism protects the inserted magnets from the heat. Like all the types of FX, the FX-V has a completely nickel-plated magnetic coil and provides excellent inspection results, even with rough surfaces. The FX-V will be activated by a single stable, smooth runnig lever.

FX-V H2
mm		 IPE HEB
FX-V 200 200 da 80 da 100
FX-V 400 400 da 1000 da 120
FX-V 800 800 da 1400 da 160
Products Max load capacity kg Max load capacity from (mm) Size (mm) Weight
(kg)		 Price € each. Quantity
Flat Round L B H H1 R X/Y
FX-VV200
200 diam. 20-50 mm 100 kg 10 195 64 77 141 134 30/42 5.5 € 498
FX-VV400
400 diam. 25-60 mm 200 kg 15 265 87 96 176 188 42/53 13 € 778
FX-VV800
800 diam. 35-75 mm 300 kg 20 352 112 115 210 228 51/62 28 € 1168

Safety factor 3,5 -Test method EN 13155
max. temperature of the workpiece 150°C/100%

FX-V HOT Lifting Magnets for high teperature - more than 250°

FX-V 150/300/600 HOT
FX-V HOT magnetic lifters are particularly suitable for use in high temperature processing. Thanks to the 90 ° prism, even corner profiles can be raised. In lifting parts after hot cutting, the deep prism protects the magnets inserted in the magnetic core from heat, bringing the limit of use up to 350 ° C Like all models of the series, FX-V HOT has the body of the lifter completely nickel-plated and provides excellent results even on rough surfaces.


FX-V HOT 250°C 300°C 350°C
FX-V 150 HOT 100% load 50% cycle - 85% load 33% cycle - 75% load
FX-V 300 HOT 100% load 50% cycle - 85% load 33% cycle - 75% load
FX-V 600 HOT 100% load 50% cycle - 85% load 33% cycle - 75% load
Products Max load capacity kg Max load capacity from (mm) Size (mm) Weight
(kg)		 Price € each. Quantity
Flat Round L B H H1 R X/Y
FX-V150 HOT
150 diam. 20-50 mm 75 kg 10 196 64 77 141 134 30/42 5.5 € 888
FX-V300 HOT
300 diam. 25-60 mm 150 kg 15 263 87 96 176 188 42/53 13 € 1088
FX-V600 HOT
600 diam. 35-75 mm 300 kg 20 348 112 115 210 228 51/62 28 € 1724

Safety factor 3,5 -Test method EN 13155
max. temperature of the workpiece 250°C/100%

FX-C Circular Lifting Magnets

FX-C 175/250/450
FX-C lifting magnets have a round multi-pole anchorage surface, designed for lifting rings, bushings, bearing housings, flange plates and similar parts.The load specification is valid for the contact of the entire surface with pieces that overlap from the inside to the outside (see the "Dimensions" table).Parts with a smaller contact surface can have a capacity of 3.5 kg max. per cm² of surfac

Products Max load capacity kg Max load capacity from (mm) Size (mm) Weight
(kg)		 Price € each. Quantity
Max kg/cm2 D Da Di H Hs Bs
FX-C175
175 3,5 kg/cm2 10 120 114 40 130 138 185 7.5 € 1198
FX-C250
250 3,5 kg/cm2 12 160 152 65 145 153 210 15 € 1498
FX-C450
450 3,5 kg/cm2 15 250 240 100 155 168 275 35 € 1998

Fattore di sicurezza 3 / Metodo di Test EN 13155 / max. Temperatura di lavoro 80°C
