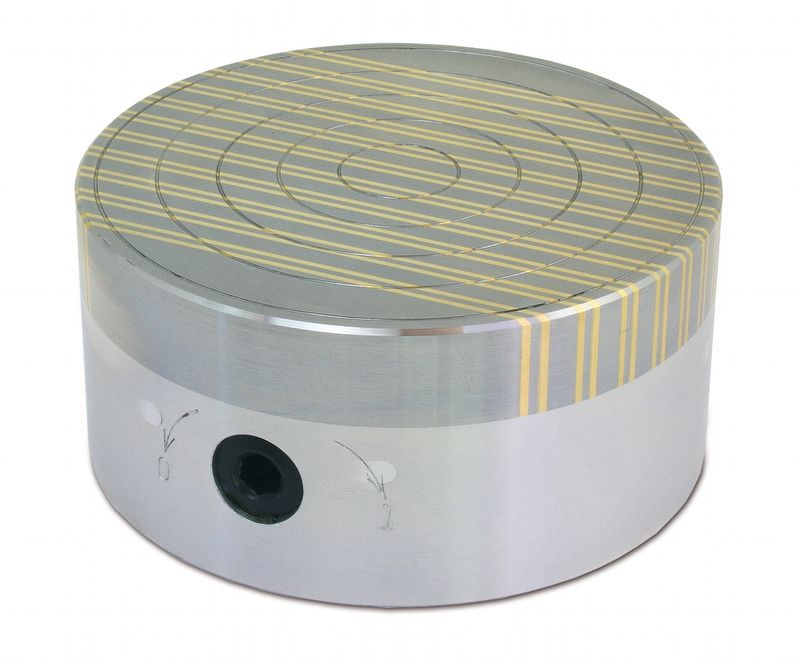

Circular magnetic chuck RF

RF - ADJUSTABLE
The circular magnetic planes of the RF type are used for turning and grinding thin details such as disks or rings. Magnetic force is adjustable at different levels. On the surface can be added an element for centering the workpiece.

Products Size (mm) Holes V-MAX.
(U/min.)
Weight (kg) Price € each. Quantity
A B C D E
RF10
100 62 70 2.5 91 3 X M5 1500 3 € 478,000
RF13
130 62 90 2.5 120 4 X M6 1200 5 € 608,000
RF16
160 75 125 3 142 4 X M8 1000 8 € 698,000
RF20
200 80 150 4.5 182 4 X M8 800 13 € 1.098,000
RF25
250 80 200 4.5 232 4 X M8 700 20 € 1.398,000
RF30
300 85 250 4.5 285 4 X M8 700 27 € 1.888,000
