FX-HV HORIZONTAL - VERTICAL HANDLING

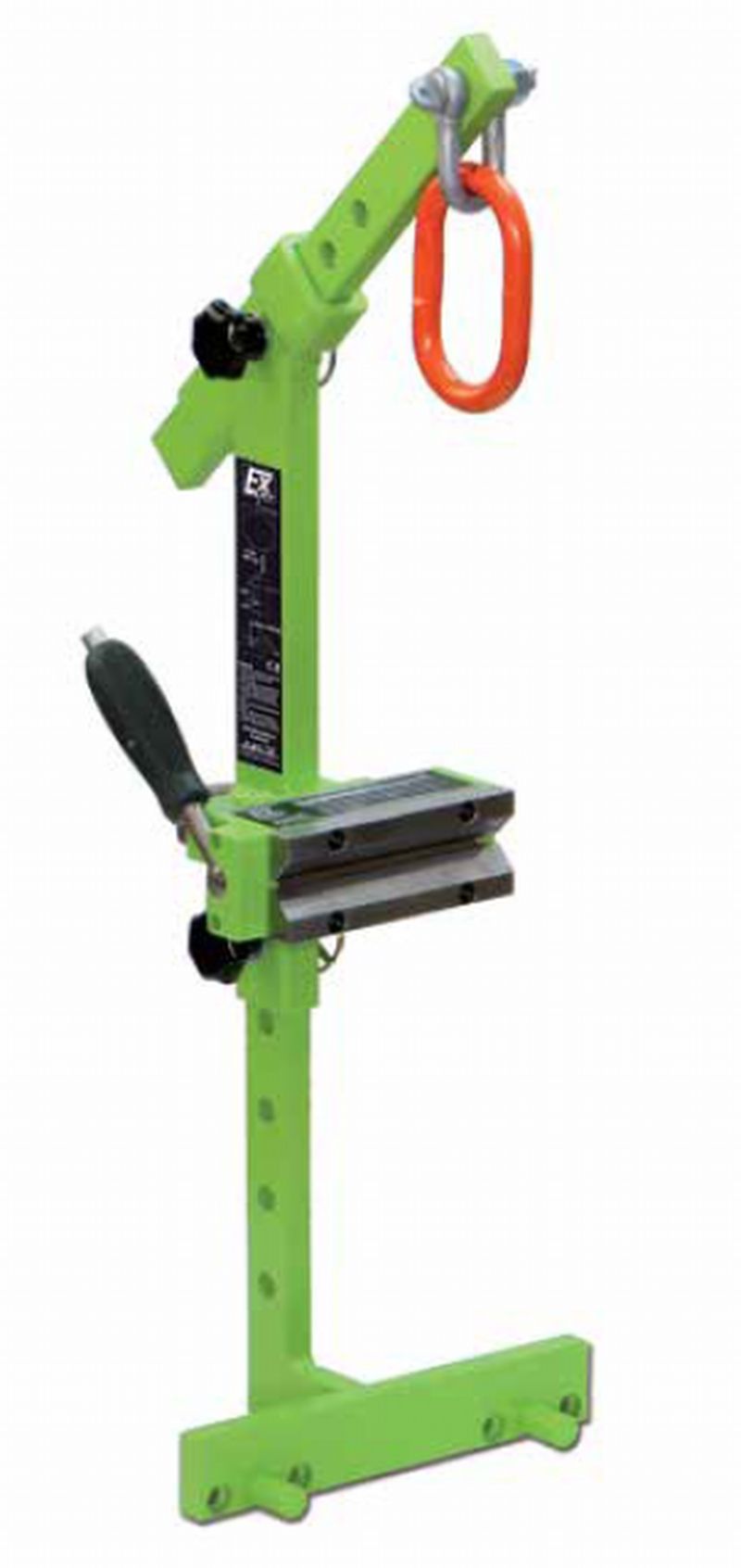

The FX-HV Horizontal – Vertical System with its various settings can satisfy all requirements.
Pins can adjust the total height and the barycenter.
The support pins are positioned in such a way that vertical, circular blanks can be lifted, which is mostly needed on the saw. They can also lift washers and sheets.
For horizontal transport, the system has a crane eyelet on the back. The steel construction is stable with a completely powder coated surface and the FX lifting magnet ensures maximum safety.

Products Ø (mm) Dimension
flat material
(mm)
Max Load
Capacity
with Stop (kg)
Max Load
Capacity
without Stop (kg)
Size
(mm)
Weight
(kg)
Price € each. Quantity
L B L1 B1
FX-HV200
250 - 750 2000 x 750 200 40 1000 400 715 390 24 € 1498
FX-HV400
400 - 1000 2000 x 1000 400 80 1250 450 795 475 31 € 1788
FX-HV800
500 - 1200 2500 x 1250 800 160 1500 500 1040 520 64 € 2388
FX-HV2000
500 - 1200 2500 x 1250 2000 400 1800 600 1200 650 250 € 4998
FX-HV3000
500 - 1200 2500 x 1250 3000 600 1800 600 1200 650 320 € 6998

FX-LT LIFTING TRUSS

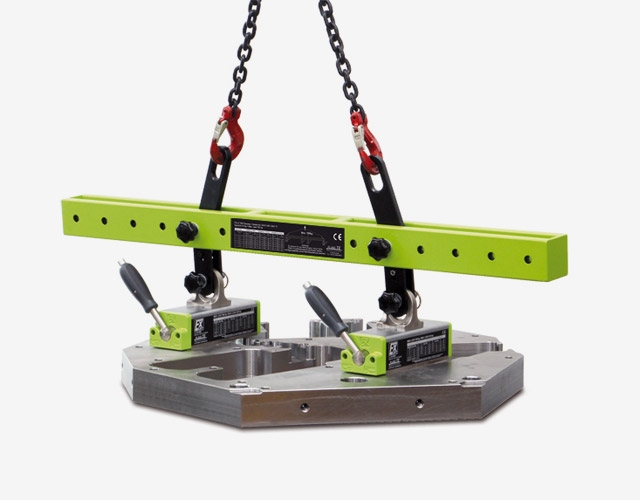

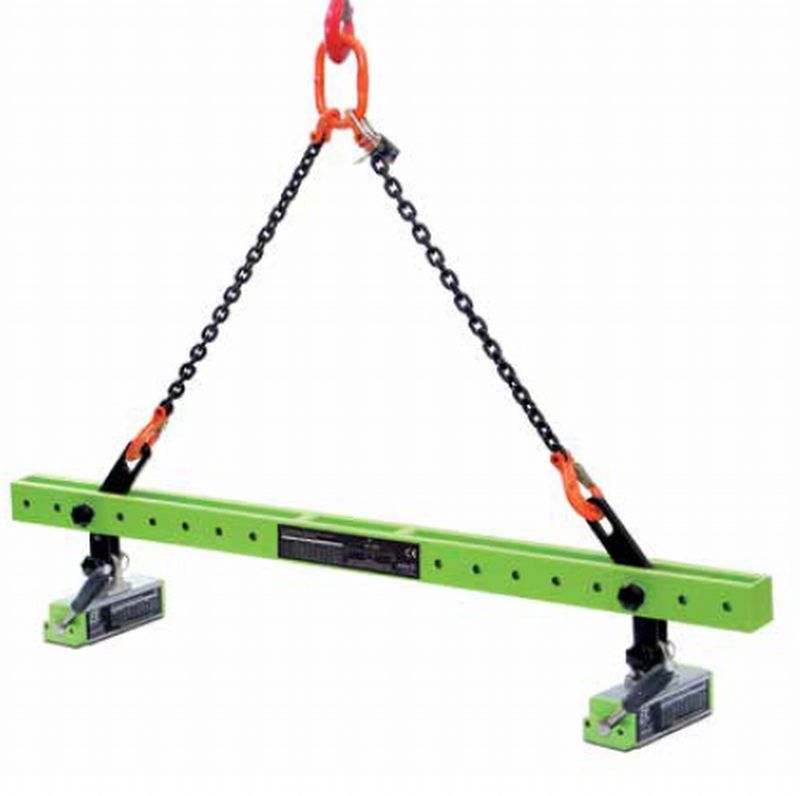

FX-LT Magnet Traverses will be adapted to the needs of sheet metal fabricators, laser cutters and flame cutters. Two FX-V lifting magnets within a certain distance, strengthened by a traverse with two-chain suspensions, allow loading and unloading of machines with sheets or the vertical lifting of workpieces with a center cutout.  With a few simple hand movements, the magnets can be removed from the traverse for lifting blanks and small plates with only one magnet.

Products Included
2 x FX
Max. Load
(mm)
Size (mm) Max. Workpiece
Dimensions

(mm)
Weight (kg) Price € each. Quantity
L H
FX-LT600
FX P330 600 1600 270 4000 x 1500 44 € 2.698,000
FX-LT700
FX-V400 700 1600 270 5000 x 1500 44 € 2.998,000
FX-LT1000
FX-600 1000 1600 291 5000 x 1500 58 € 2.998,000
FX-LT1400
FX-V800 1400 1600 360 5000 x 2000 89 € 3.398,000
FX-LT3200
FX-2000 3200 2000 480 5000 x 2500 305 € 7.888,000
FX-LT4800
FX-3000 4800 2000 600 5000 x 2500 410 € 9.588,000

FX-KT Small Size Beam

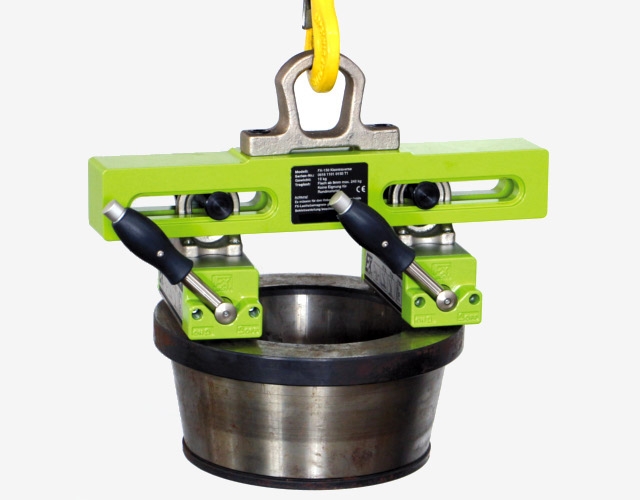

The horizontal beam FX-KT is ideal for working on metal sheets and laser cutting. Two FX Lifter are fixed with adjustable distance on the horizontal beam allowing the handling of different loads.In particular rings and cylindrical elements.


Products Included
2 x FX
Max. Load
Lifters
Capacity from
(mm)
Size (mm) L2 (mm) Weight (kg) Price € each. Quantity
L1 H

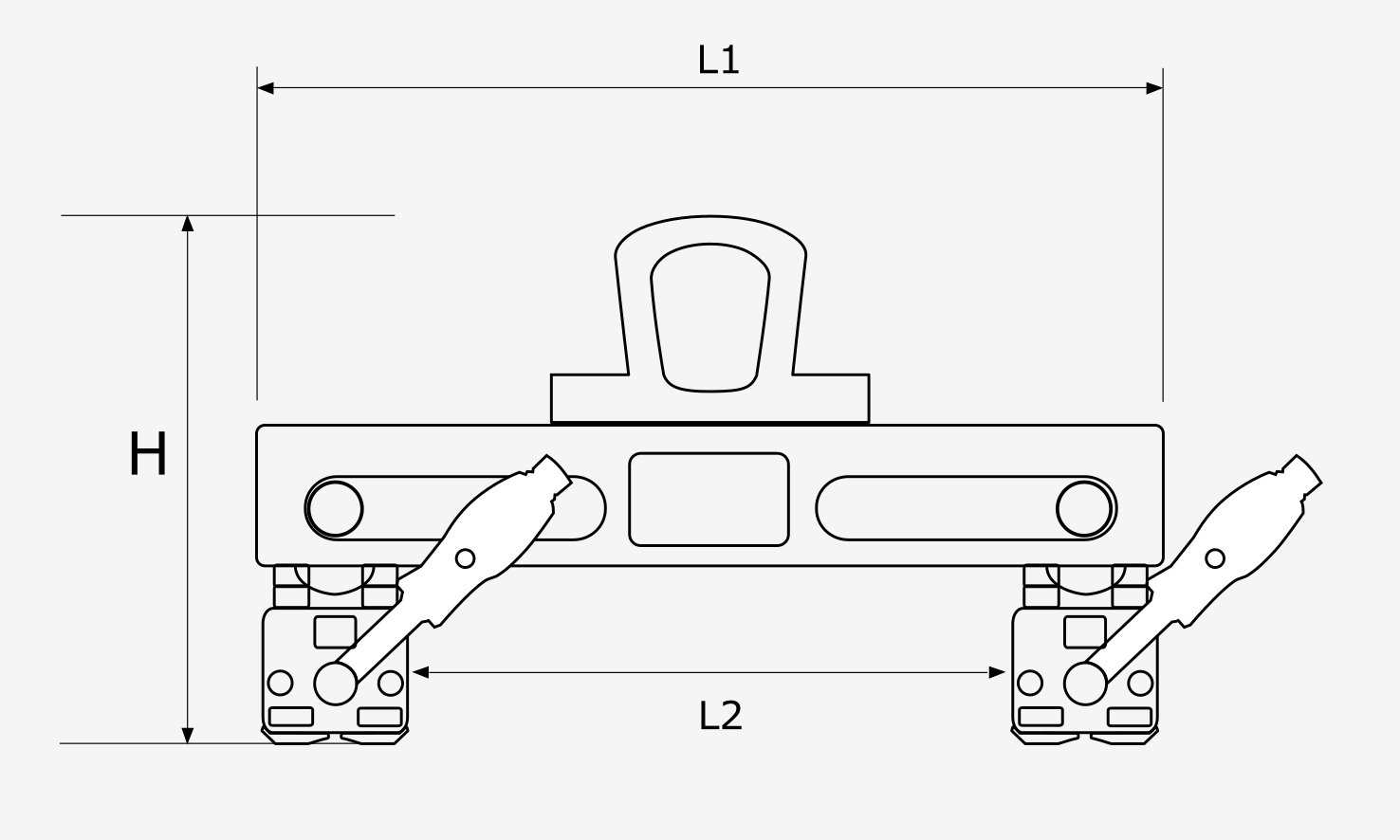

FX-KT240-260
FX-150 240 8 400 233 58-260 15 € 1.398,000
FX-KT240-420
FX-150 240 8 560 233 58-420 15 € 1.598,000
FX-KT240-470
FX-150 240 8 607 233 58-470 20 € 1.648,000
FX-KT240-540
FX-150 240 8 680 233 58-540 22 € 1.698,000
FX-KT480-440
FX-300 480 15 620 269 65-440 26 € 1.798,000
FX-KT480-600
FX-300 480 15 800 269 65-600 30 € 1.998,000
FX-KT480-800
FX-300 480 15 1000 269 65-800 32 € 2.188,000
