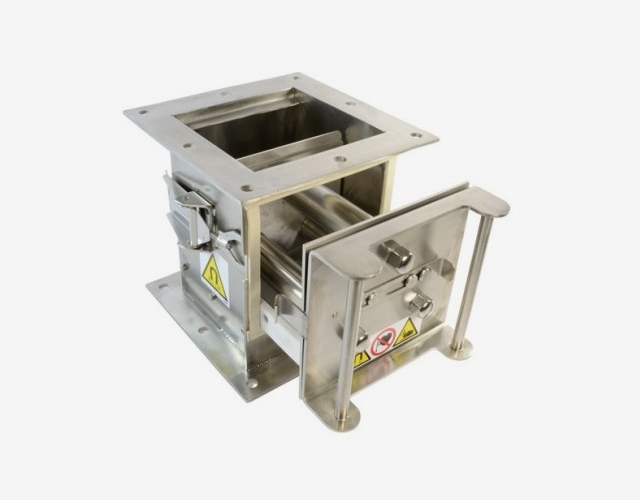

Magnetic drawers for iron separation

Drawer construction facilitates and accelerates cleaning. We offer two versions of magnetic drawers for iron separation: with or without truck. Magnetic separators with truck are relatively easy in service and cleaning, whereas separators without truck require larger force while cleaning.

Products Material Size (mm) Weight (kg) Price € each. Quantity
Ø D Ext. Ø Bar B L H

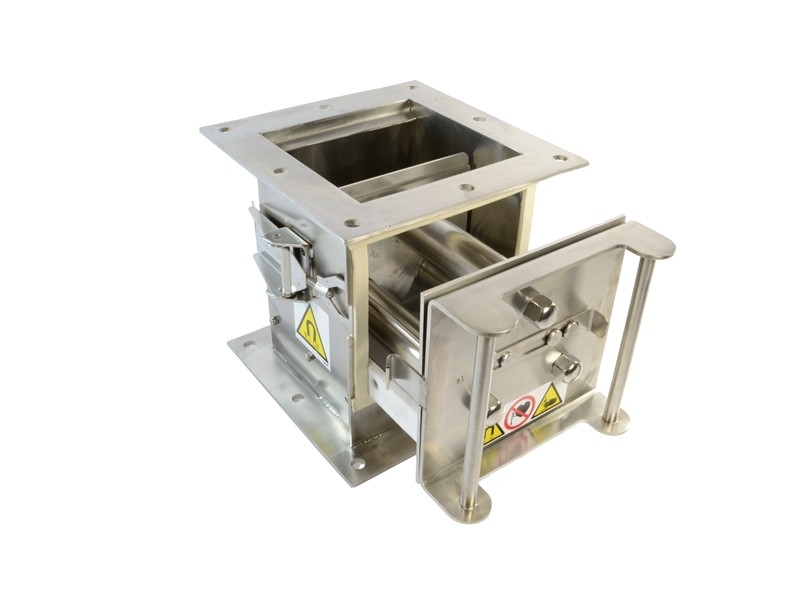

MD 135x135/200x200/N
NdFeB 0 3x32 135 135 200 9 € 1.370,000
2 Level MD 220x220x350/2xDN150/N
NdFeB 0 5x32 220 220 350 30 € 2.525,000

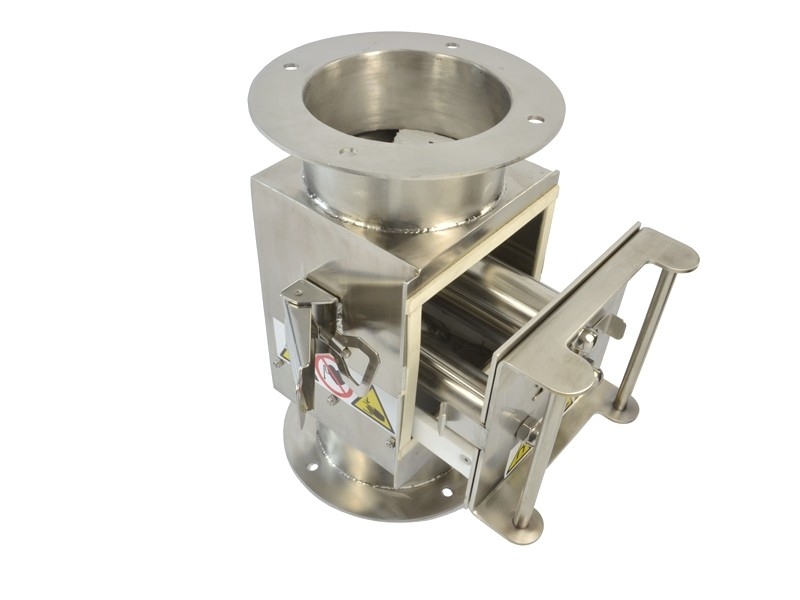

MD 135x135x200/2xD129/N
NdFeB 129 3x32 135 135 315 9.5 € 1.462,500

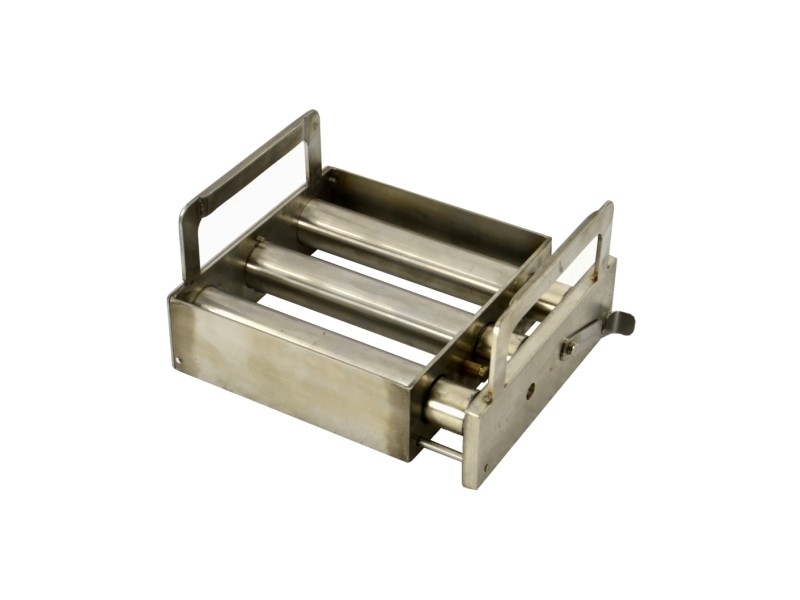

One-level MD 180x180x56/110 / N
NdFeB 0 3x32 180 180 56 5 € 692,500
One-level MD 250x250x56/116 / N
NdFeB 0 4x32 250 250 56 10 € 1.167,500
One-level MD 280/340x150/4w / N
NdFeB 0 4x32 340 280 150 16.3 € 2.187,500
One-level MD280/340x150/5w / N
NdFeB 0 5x32 340 280 150 17.8 € 2.375,000
MD with truck 192/252x200x630 / N
NdFeB 0 5x32 252 192 200 18.3 € 2.250,000
MD with truck 256/315x200x840 / N
NdFeB 0 7x32 315 256 200 26.4 € 3.062,500
MD 320x320x355 / N
NdFeB 0 7x32 320 320 355 32.5 € 3.907,500
MD 320x320x350/DN300Jacob/N
NdFeB 0 7x32 320 320 350 30 € 3.902,500
