Separating magnetic cones

Separating magnetic cones are used to catch magnetically soft elements, such as iron filings and screws, from bulk and liquid materials. They are designed to work in silos and pipelines. Cones are mostly mounted in so called “revisions”. They are intended to work in food industry, as well as in plastics processing, ceramics and many other industries.

Products Material Size (mm) ISO M Flow (T) Weight (kg) Price € each. Quantity
Ø D Ext. Height Height (TOT.)
CMS 34 x 95 / 135 / M6 / N
NdFeB 34 95 135 6 0.55 € 175,000
CMS 34 x 100 / 120 / M6 / N
NdFeB 34 100 120 6 max. 1,0 (T) 0.51 € 160,000

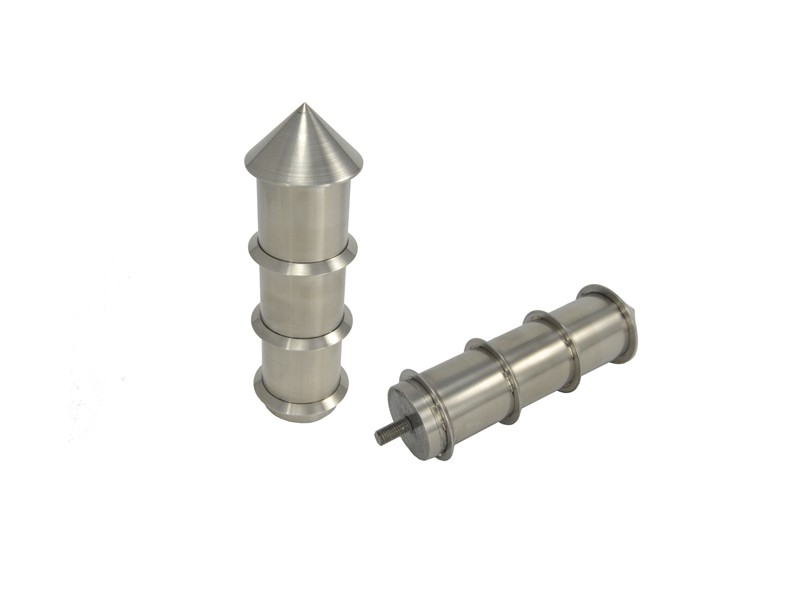

CMS 63 X 176 / 206 / M10 / N
NdFeB 63 176 206 10 max. 0,76 (T) 2.2 € 660,000
CMS 63 X 200 / 220 / M10 / NKO
NdFeB 63 200 220 10 max. 1,05 (T) 2.95 € 850,000
CMS 150 x 280 / 315 / M12 / F
Ferrite 150 280 315 12 max. 0,46 (T) 14 € 612,000
CMS 150 x 280 / 330 / M12 / F
Ferrite 150 280 330 12 13.9 € 697,500
CMS 150 x 300 / 335 / M10 / N
NdFeB 150 300 335 10 max. 1,05 (T) 19.5 € 2.600,000

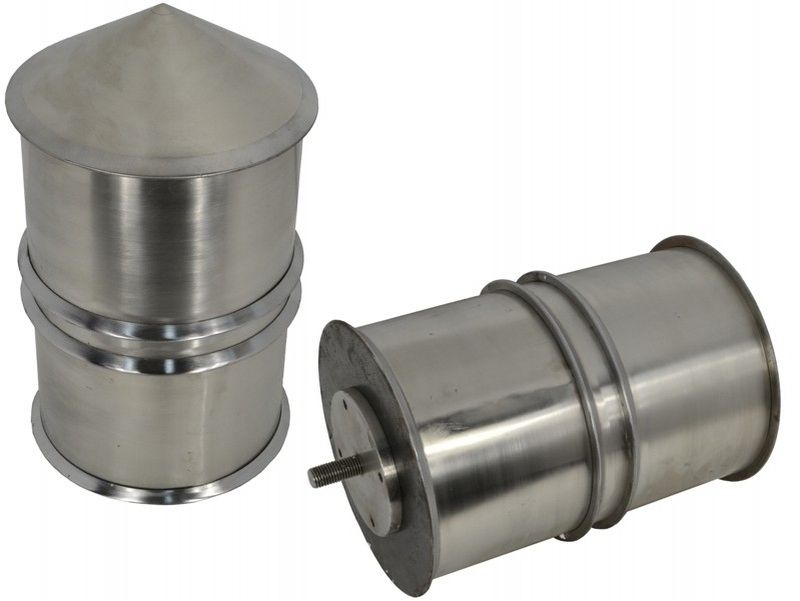

CMS 210 x 370 / 405 / M16 / F
Ferrite 210 370 405 16 max. 0,46 (T) 49 € 912,000
