Circular magentic chuck RM

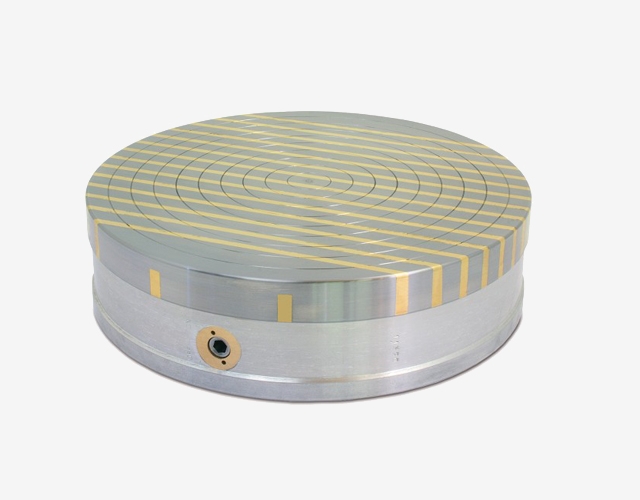

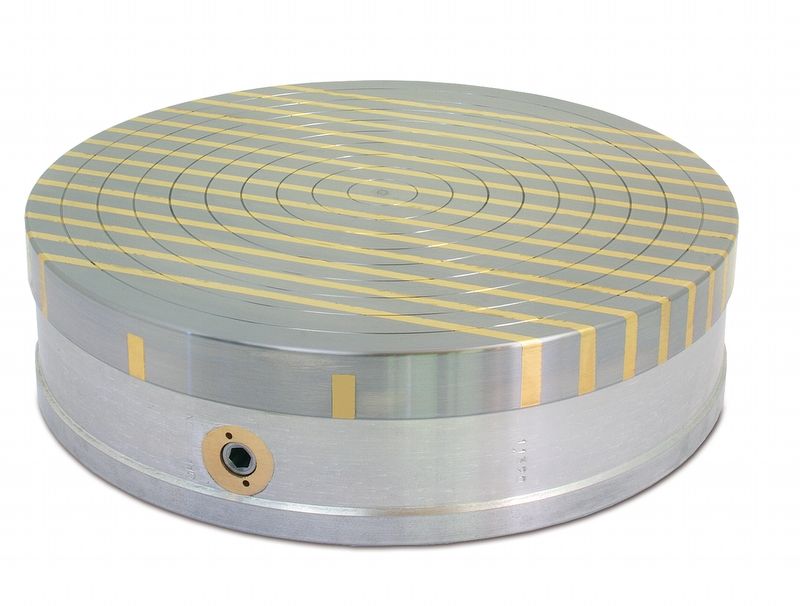

RM CIRCULAR MAGNETIC CHUCK FOR MILLING
The RM magnetic circular planes are used for mechanical machining of milling, turning and grinding of medium size parts. Magnetic force is adjustable at different levels. On the surface can be added an element for centering the workpiece.

Products Size (mm) Holes V-MAX.
(U/min.)
Weight (kg) Price € each. Quantity
A B C D E
RM 20
200 80 150 4.5 182 4 X M8 800 13 € 928,000
RM 25
250 80 200 4.5 232 4 X M8 700 20 € 1.198,000
RM 30
300 85 250 4.5 285 4 X M8 700 27 € 1.598,000
RM 35
350 85 300 4.4 334 4 X M8 600 37 € 2.298,000
RM 40
400 100 300 5 350 6 x M10 500 56 € 2.998,000
RM 45
450 100 350 5 400 6 x M10 450 70 € 4.498,000
RM 50
500 100 400 5 450 6 x M10 400 90 € 4.998,000
