Ferrite holding magnets

HIGH RESISTENCE
Ferrite holding magnets are cased in steel. They are characterized by higher strength than the magnets. They are widely used in many branches, such as industry, architecture, automotive, agriculture and advertising.

Holding magnets with internal thread

Products Size (mm) Holding Force (kg) Price € each. Quantity
A M B

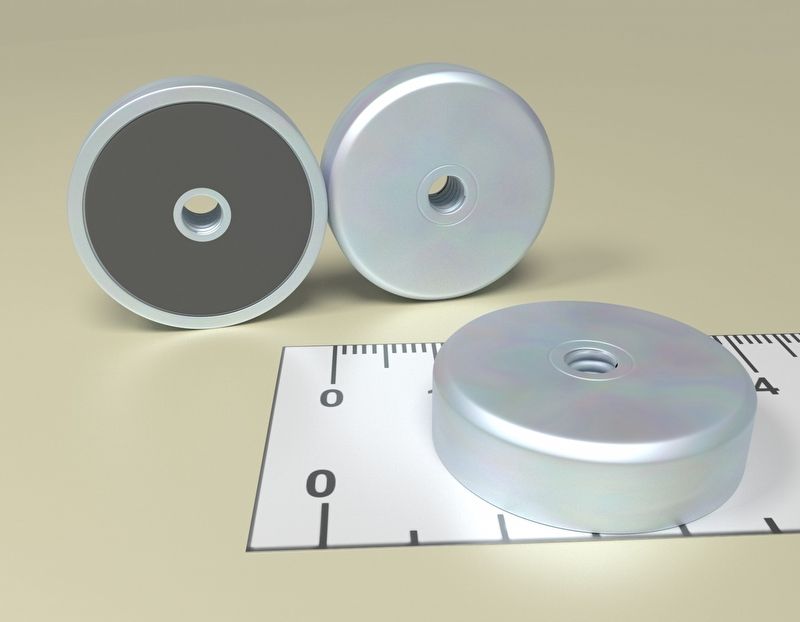

HM 25 x 7 / M4
25 4 7 2.5 up to 45
€ 1,175
from 45
€ 1,050
HM 32 x 7 / M4
32 4 7 6 up to 35
€ 1,450
from 35
€ 1,275

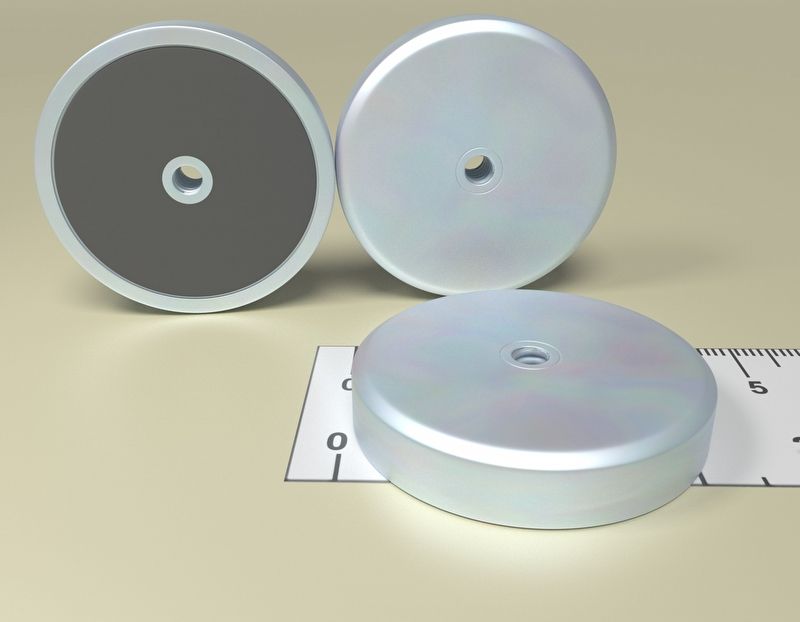

HM 40 x 8 / M4
40 4 8 7 up to 25
€ 2,075
from 25
€ 1,825
HM 50 x 10 / M6
50 6 10 12.5 up to 20
€ 2,575
from 20
€ 2,250
HM 63 x 14 / M8
63 8 14 25 up to 10
€ 5,600
from 10
€ 4,925
HM 80 x 18 / M10
80 10 18 45 up to 5
€ 9,000
from 5
€ 7,950

Holding magnets with central hole and conical countersink

Products Size (mm) Holding Force (kg) Price € each. Quantity
A D1 D2 B
HM 16 x 6,5/3,3 x 4,5
16 3.3 6.5 4.5 0.3 up to 90
€ 0,600
from 90
€ 0,550
HM 20 x 8,6/4,2 x 6
20 4.2 8.6 6 2.3 up to 70
€ 0,775
from 70
€ 0,700

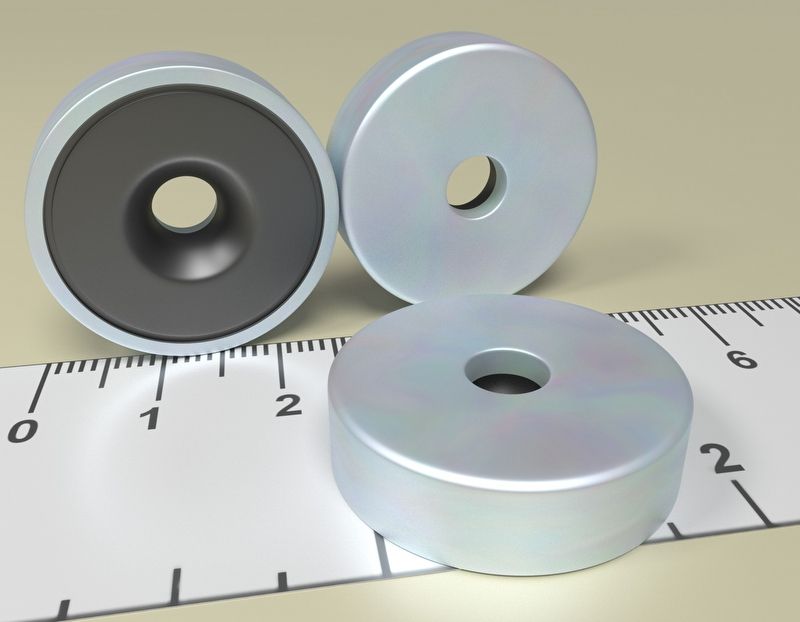

HM 25 x 11,5/5,5 x 7
25 5.5 11.5 7 3.5 up to 50
€ 1,125
from 50
€ 0,975

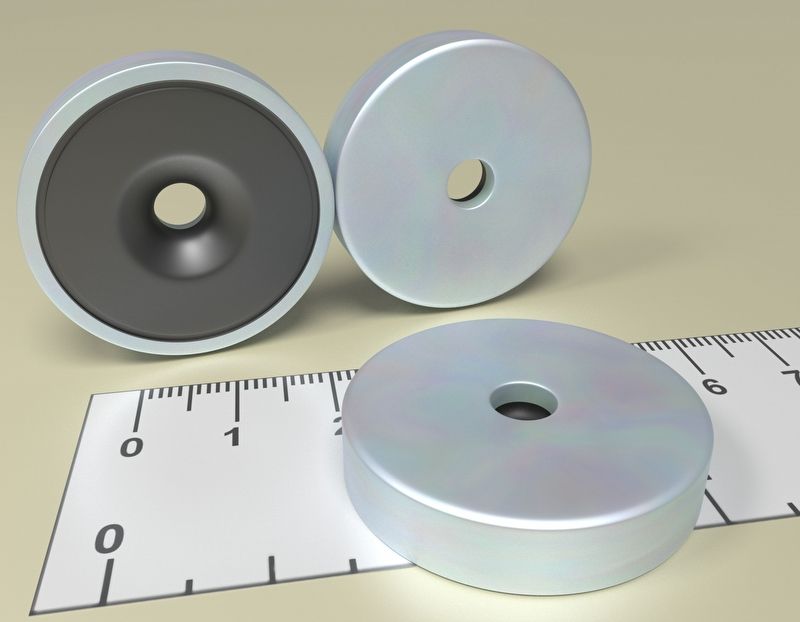

HM 32 x 11,5/5,5 x 7
32 5.5 11.5 7 9 up to 40
€ 1,425
from 40
€ 1,275

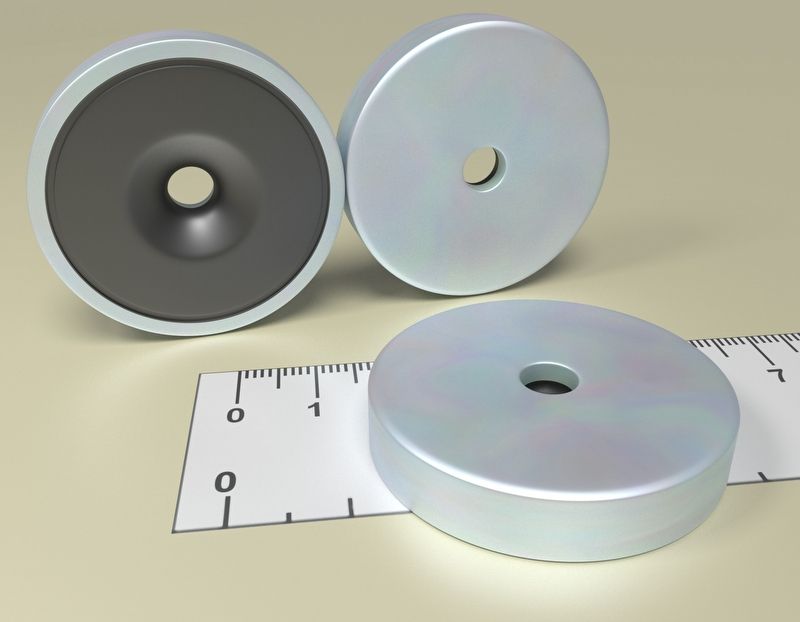

HM 40 x 13/5,5 x 8
40 5.5 13 8 20 up to 30
€ 1,850
from 30
€ 1,650

Holding magnets with central hole and cylindrical countersink

Products Size (mm) Holding Force (kg) Price € each. Quantity
A D1 D2 B

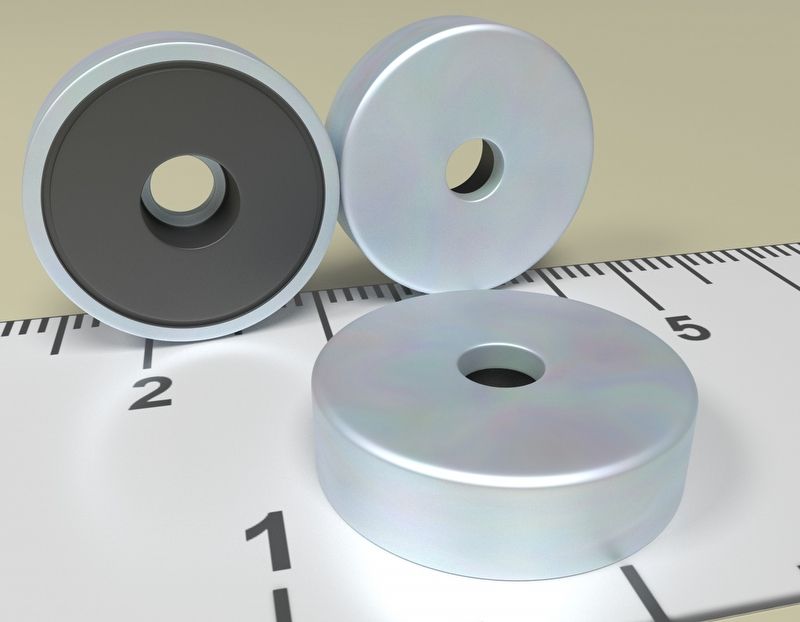

HM 16 x 5 x 3,3 x 4,5
16 3.3 5 4.5 0.5 up to 90
€ 0,600
from 90
€ 0,525

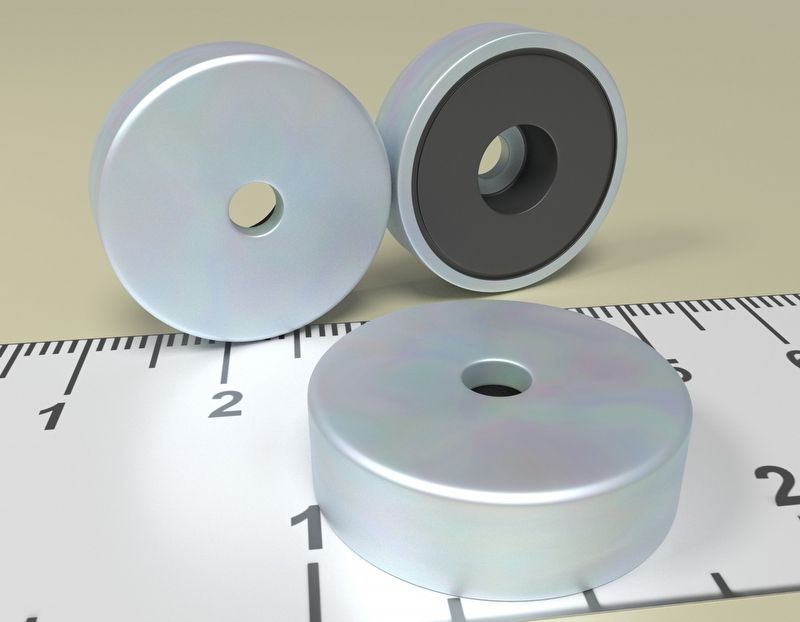

HM 20 x 7 x 3,3 x 6
20 3.3 7 6 1.6 up to 70
€ 0,775
from 70
€ 0,675

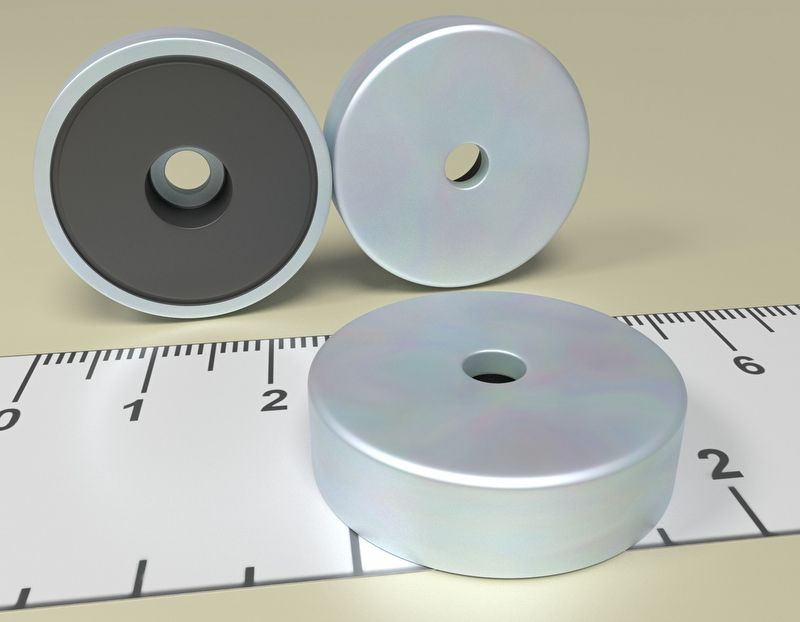

HM 25 x 7 x 4 x 7
25 4 7 7 3.1 up to 50
€ 1,050
from 50
€ 0,925

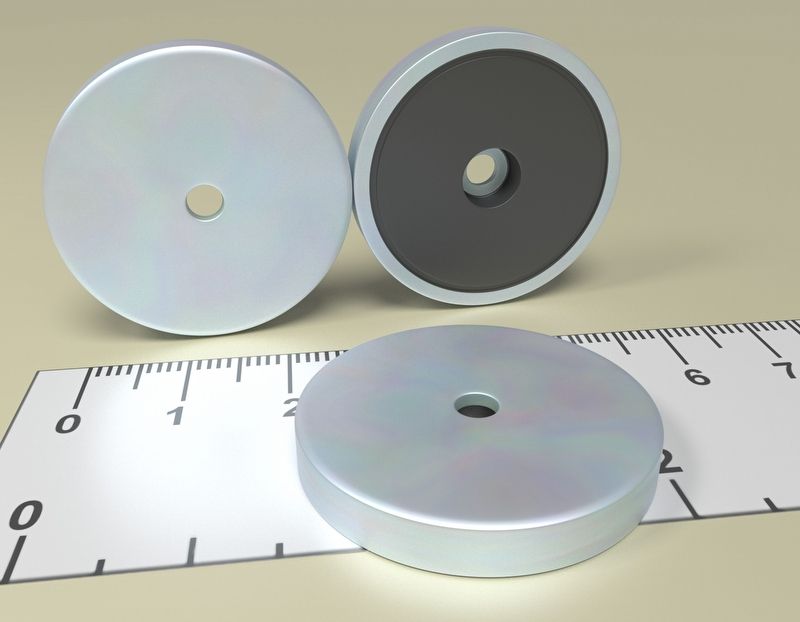

HM 30 x 6,3 x 3,3 x 4,6
30 3.3 6.3 4.6 8.5 up to 80
€ 0,675
from 80
€ 0,600

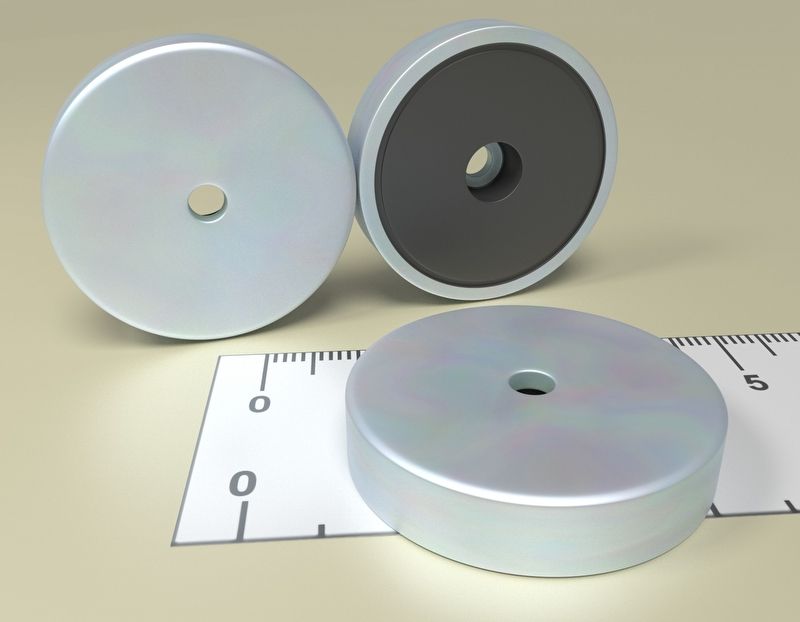

HM 32 x 6 x 4 x 7
32 4 6 7 8 up to 40
€ 1,375
from 40
€ 1,225
HM 36 x 9 x 4 x 7,7
36 4 9 7.7 10.5 up to 35
€ 1,550
from 35
€ 1,375
HM 36,2 x 9,3 x 4,8 x 7,2
36.2 4.8 9.3 7.2 12.5 up to 55
€ 0,950
from 55
€ 0,850
HM 40 x 17 x 5,5 x 8
40 5.5 17 8 10 up to 30
€ 1,825
from 30
€ 1,600
HM 47 x 19 x 5,5 x 9
47 5.5 19 9 11 up to 25
€ 2,075
from 25
€ 1,850
HM 50 x 21 x 5,5 x 10
50 5.5 21 10 15 up to 25
€ 2,300
from 25
€ 2,025
HM 52 x 22 x 5 x 8
52 5 22 8 23 up to 30
€ 1,575
from 30
€ 1,400
HM 57 x 23 x 6,5 x 10,5
57 6.5 23 10.5 30 up to 20
€ 2,900
from 20
€ 2,575

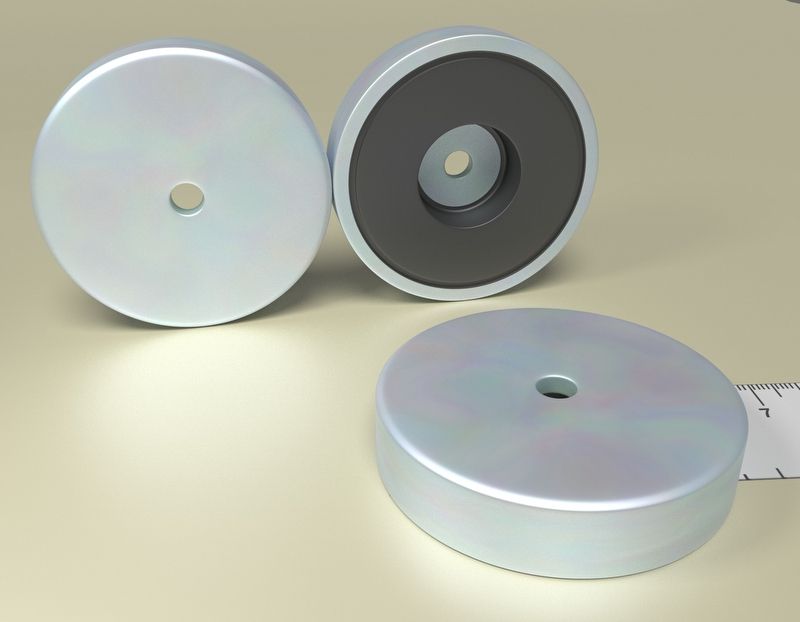

HM 63 x 23 x 6,5 x 14
63 6.5 23 14 22 up to 10
€ 5,300
from 10
€ 4,700
HM 67 x 23 x 6,5 x 10
67 6.5 23 10 43 up to 20
€ 2,975
from 20
€ 2,625
HM 80 x 32 x 10,5 x 18
80 10.5 32 18 62 up to 7
€ 8,125
from 7
€ 7,175

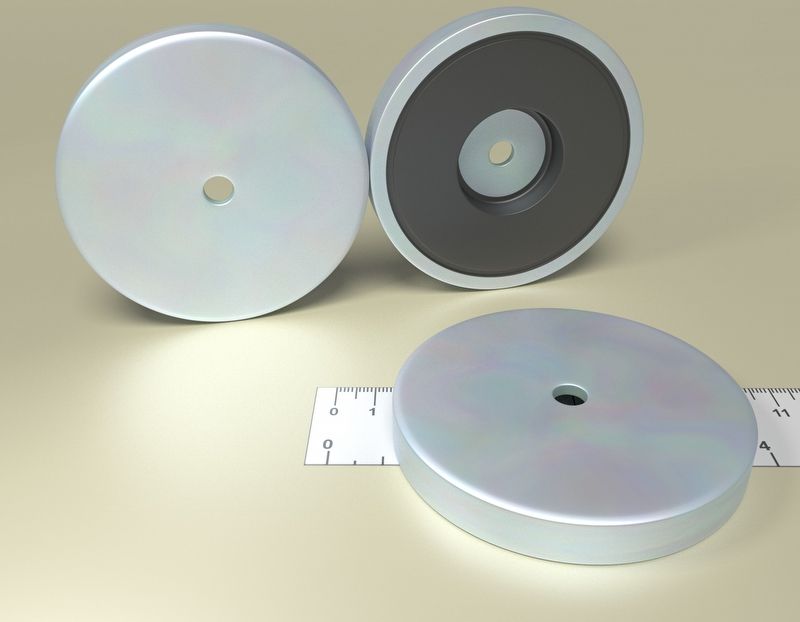

HM 81,3 x 32 x 7 x 11,5
81.3 7 32 11.5 61 up to 15
€ 4,050
from 15
€ 3,575
HM 81,3 x 32 x 9,5 x 11,5
81.3 9.5 32 11.5 49 up to 12
€ 4,475
from 12
€ 3,975
HM 97 x 34 x 10,5 x 22
97 10.5 34 22 92 up to 5
€ 14,325
from 5
€ 12,650
HM 98 x 34 x 10 x 13
98 10 34 13 80 up to 8
€ 6,725
from 8
€ 5,950

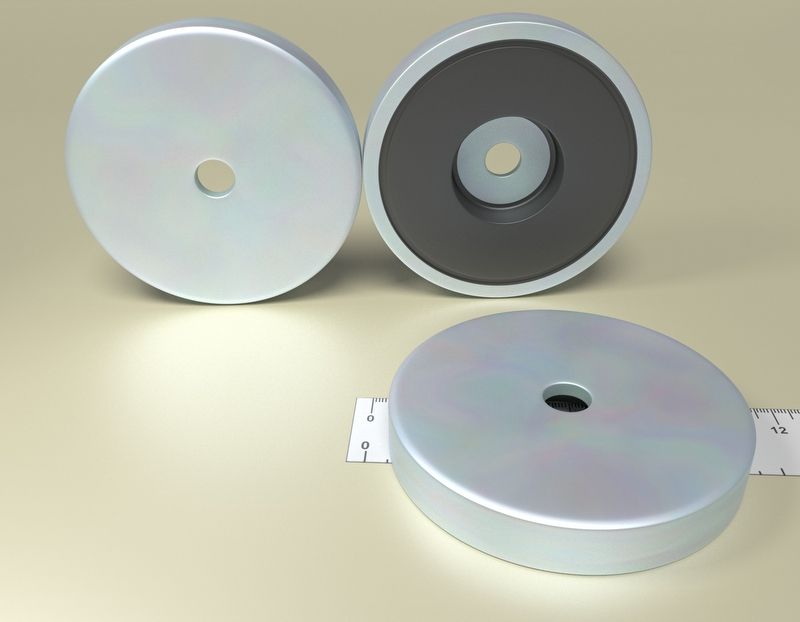

HM 98,3 x 34 x 12 x 16
98.3 12 34 16 80 up to 8
€ 6,725
from 8
€ 5,950

Holding magnets with threaded pin

Products Size (mm) Holding Force (kg) Price € each. Quantity
A M C B
HM 16 x 4,5 x M3 out x 11,5
16 3 7 4.5 1.3 up to 80
€ 0,650
from 80
€ 0,575
HM 20 x 6 x M3 out x 13
20 3 7 6 2.1 up to 60
€ 0,850
from 60
€ 0,750

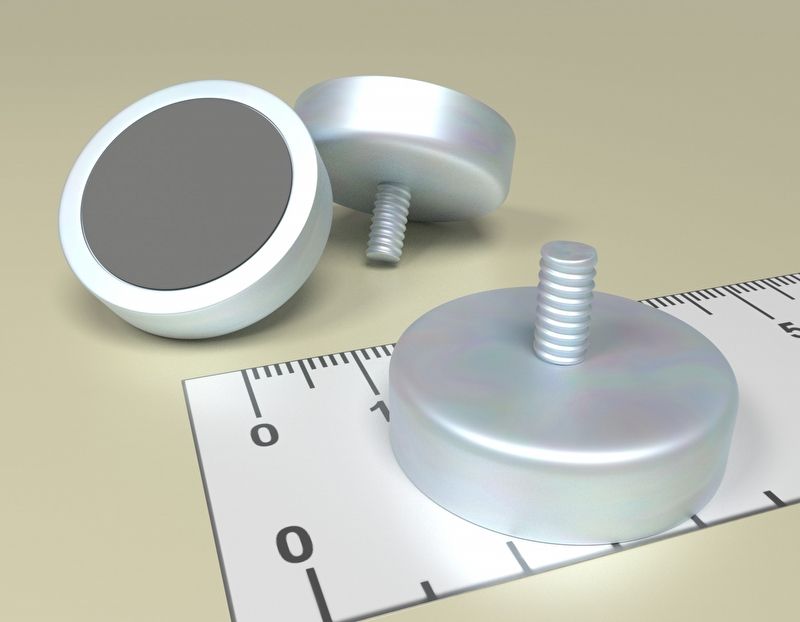

HM 25 x 7 x M4 out x 15
25 4 8 7 4.6 up to 50
€ 1,125
from 50
€ 0,975
HM 32 x 7 x M4 out x 15
32 4 8 7 9.4 up to 40
€ 1,375
from 40
€ 1,225
HM 47 x 9 x M4 out x 17
47 4 8 9 19.3 up to 25
€ 2,250
from 25
€ 2,000

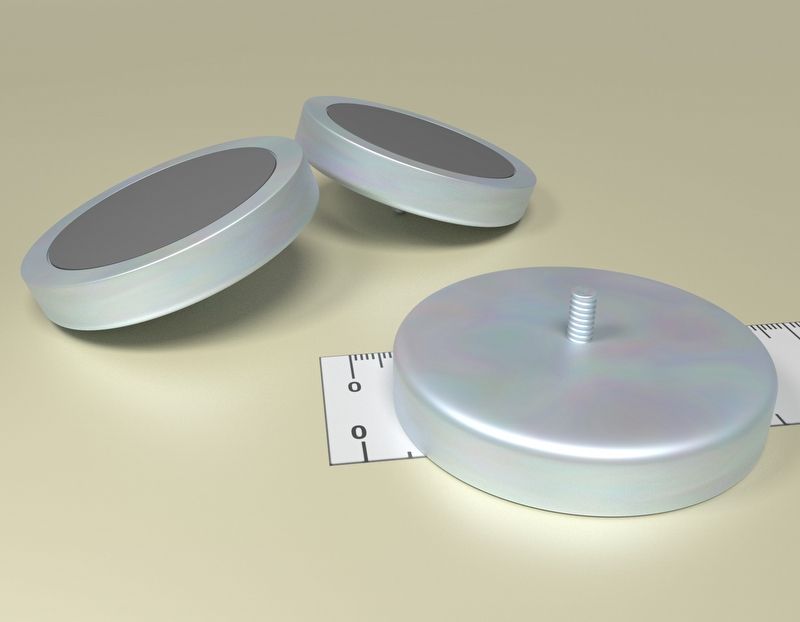

HM 57 x 10,5 x M4 out x 18,5
57 4 8 10.5 35.6 up to 15
€ 3,675
from 15
€ 3,250
HM 63 x 14 x M6 out x 29
63 6 15 14 39 up to 10
€ 4,950
from 10
€ 4,375

Holding magnets with internal thread

Products Size (mm) Holding Force (kg) Price € each. Quantity
A M C B
HM 16 x 4,5 x M3 in x 11,5
16 3 11.5 4.5 1.1 up to 80
€ 0,650
from 80
€ 0,575
HM 20 x 6 x M4 in x 13
20 4 13 6 2 up to 60
€ 0,850
from 60
€ 0,750

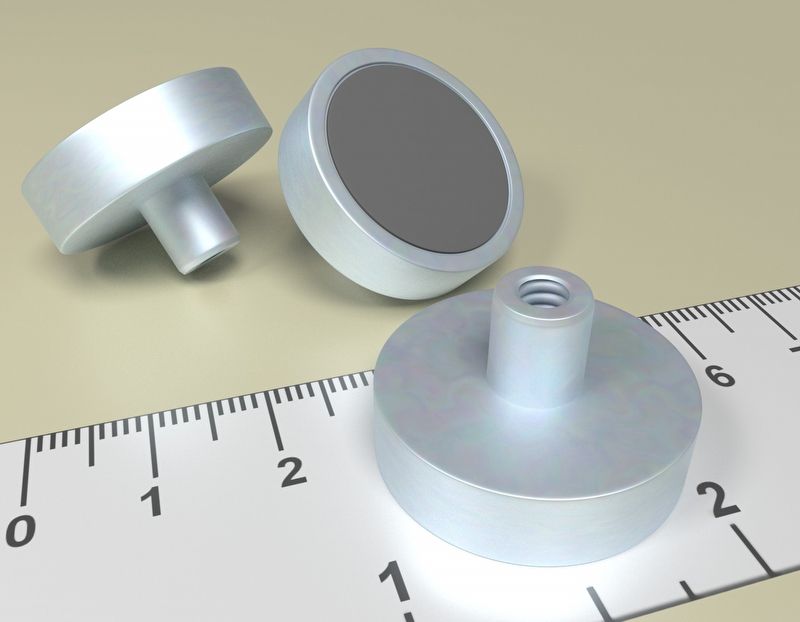

HM 25 x 7 x M4 in x 15
25 4 15 7 3.5 up to 45
€ 1,125
from 45
€ 1,000
HM 32 x 7 x M4 in x 15
32 4 15 7 8 up to 40
€ 1,400
from 40
€ 1,250
HM 36 x 7,7 x M4 in x 16
36 4 16 7.7 11 up to 30
€ 1,725
from 30
€ 1,525
HM 40 x 8 x M6 in x 18
40 6 18 8 15.4 up to 25
€ 2,075
from 25
€ 1,825
HM 47 x 9 x M6 in x 17
47 6 17 9 22 up to 25
€ 2,200
from 25
€ 1,950

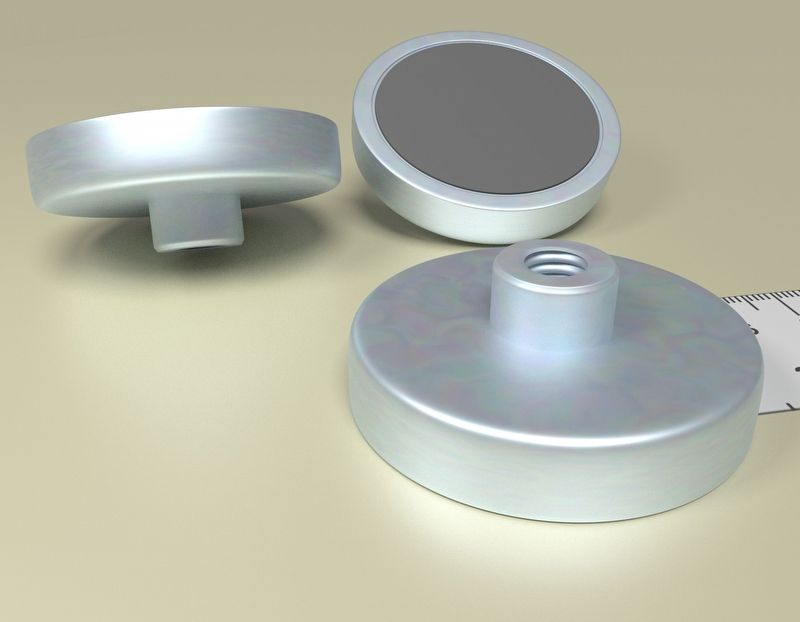

HM 50 x 10 x M8 in x 18
50 8 18 10 24 up to 20
€ 2,575
from 20
€ 2,250
HM 57 x 10,5 x M8 in x 18
57 8 18 10.5 38.5 up to 15
€ 3,675
from 15
€ 3,250
HM 63 x 14 x M8 in x 30
63 8 30 14 35 up to 10
€ 5,075
from 10
€ 4,475

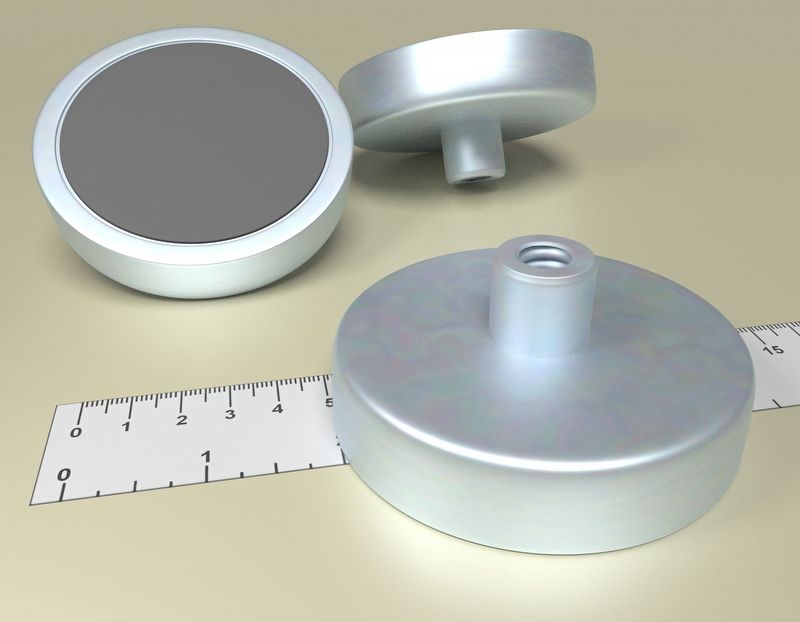

HM 80 x 18 x M10 in x 34
80 10 34 18 78 up to 5
€ 9,400
from 5
€ 8,325

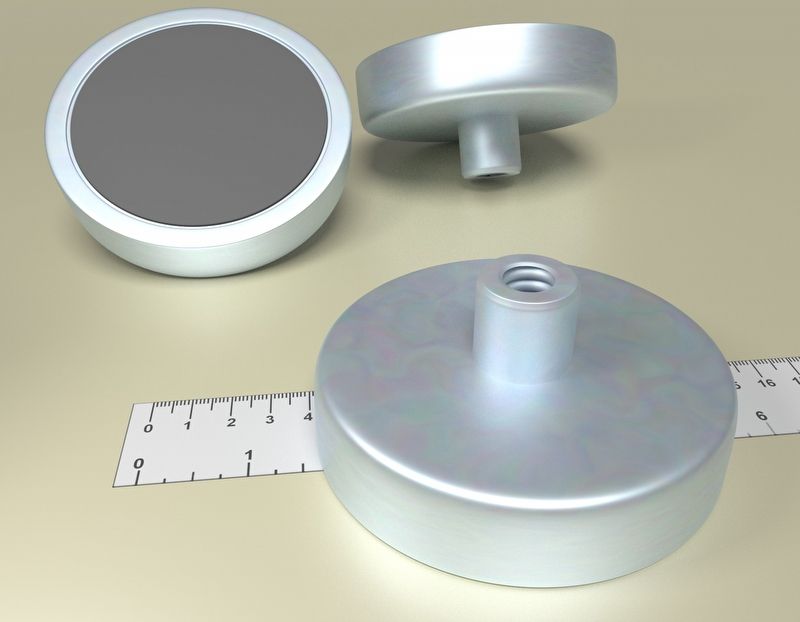

HM 97 x 22 x M12 in x 43
97 12 43 22 98 up to 5
€ 15,675
from 5
€ 13,850
HM 124 x 26 x M14 in x 50
124 14 50 26 130 up to 2
€ 35,000
from 2
€ 31,000
