Electromagnets

These magnetic solenoids consist of an electromagnetic system without locking. The open magnetic circuit (under voltage) allows to hold or block ferromagnetic pieces.

Electromagnets

Circular 24V circular electromagnet with sealed encapsulated IP 54 enclosure, nickel-plated external body, power outlet at the back. Upon request also available with side cable outlet.

  • Max. Working temperature 60 ° C
  • Standard Voltage 24 V DC
  • Protection Class IP 54
  • ED 100%

Products Size (mm) Max load capacity (kg) Weight (kg) Price € each. Quantity

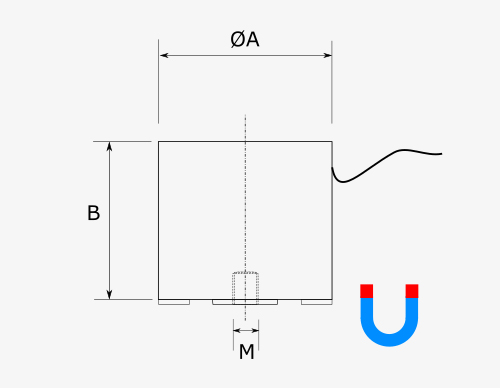

Ø A B
GT015 h12 - IP54
15 12 3.6 0.02 up to 5
€ 69,966
from 10
€ 55,973

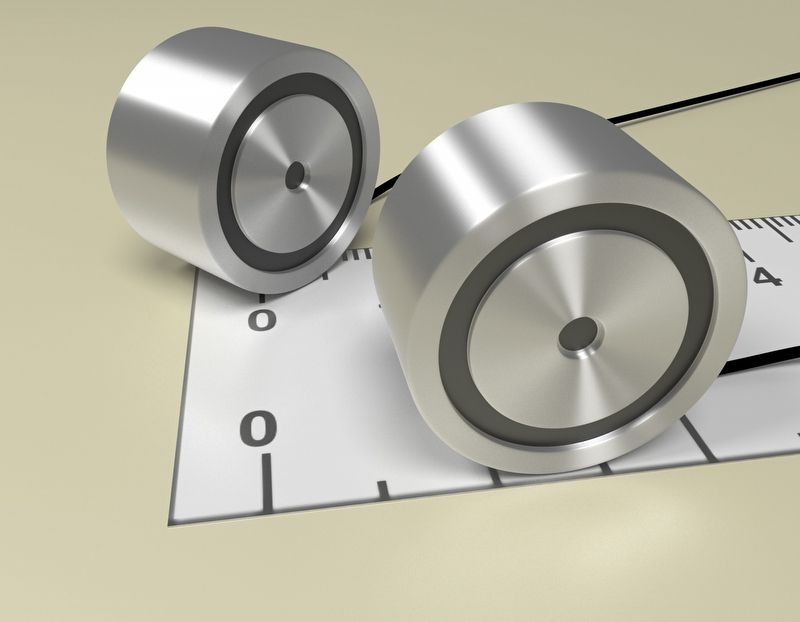

GT018 h11 - IP54
18 11 4 0.02 up to 5
€ 47,058
from 10
€ 37,646

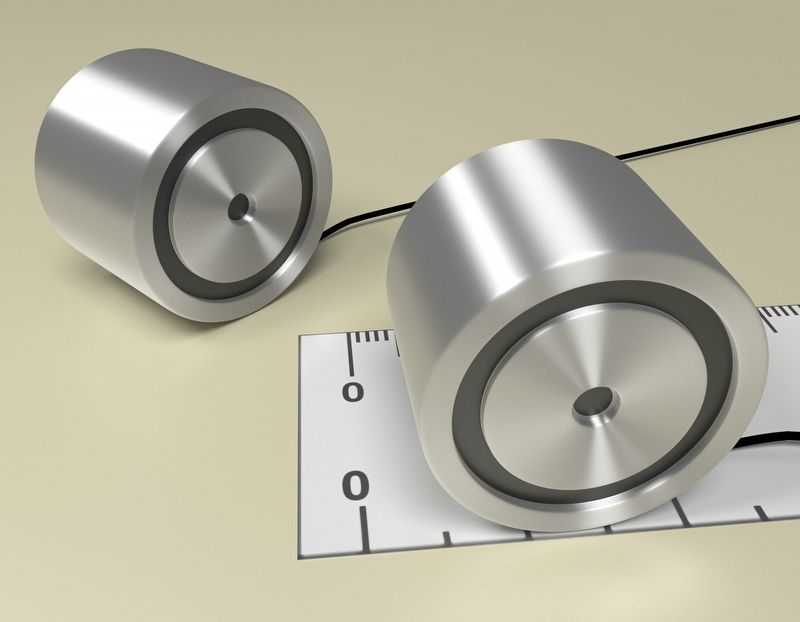

GT025 h20 - IP54
25 20 14 0.06 up to 5
€ 54,924
from 10
€ 43,939

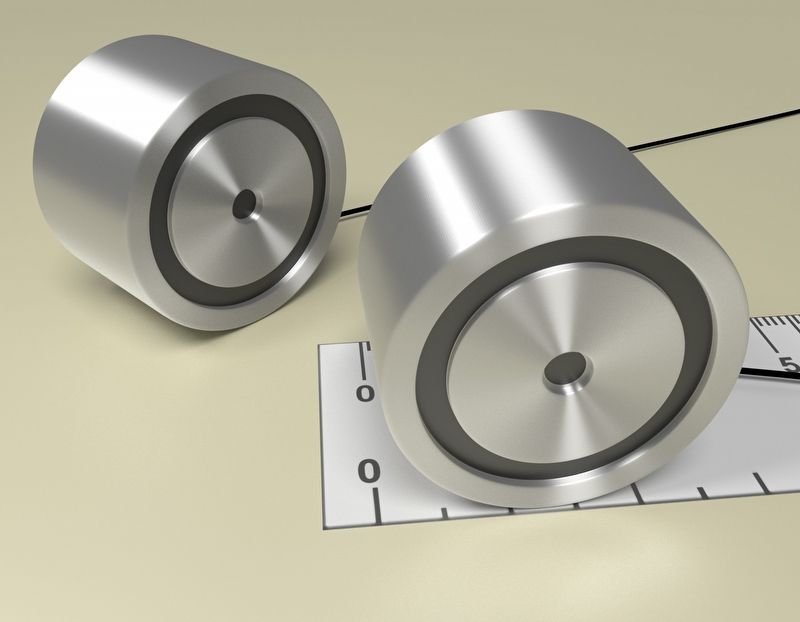

GT032 h22 - IP54
32 22 23 0.11 up to 5
€ 65,550
from 10
€ 52,440
GT040 h25 - IP54
40 25 45 0.22 up to 5
€ 80,730
from 10
€ 64,584
GT050 h27 - IP54
50 27 70 0.3 up to 5
€ 85,560
from 10
€ 68,448
GT063 h30 - IP54
63 30 95 0.55 up to 5
€ 109,296
from 10
€ 87,437
GT070 h35 - IP54
70 35 150 1.1 up to 5
€ 120,474
from 10
€ 96,379
GT080 h38 - IP54
80 38 180 1.2 up to 5
€ 149,040
from 10
€ 119,232
GT090 h42 - IP54
90 42 300 1.8 up to 5
€ 191,820
from 10
€ 153,456
GT100 h43 - IP54
100 43 320 2.1 up to 5
€ 227,700
from 10
€ 182,160
